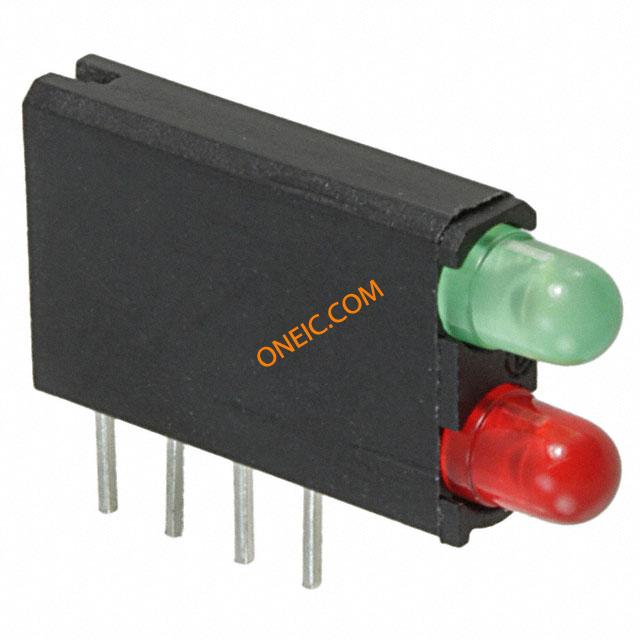

569-0112-100F
| Manufacturer | |
| Description | LED Circuit Board Indicators CBI 3MM BI-LEVEL G-R LED Bi-Level Uni-Color Green/Red 565nm/635nm 8-Pin Bulk LED CBI 3MM BI-LEVEL GRN,RED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Circuit Board Indicators | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 20mA | Optic Size | 3 mm |
| Wavelength | 569 nm | Lamp Output | No |
| Luminous Flux | 12.6mcd|10mcd | Viewing Angle | 60 deg |
| Voltage Rating | 2.1V Green, 2V Red | Wavelength - Peak | 565nm, 635nm |
| LED Forward Current | 20 mA | LED Forward Voltage | 2.1 V |
| Millicandela Rating | 12.6mcd Green, 10mcd Red | Power Dissipation (Max) | 100 |
| Current - Peak Pulse (10/1000us) | 30 | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical
| Color | Green/Red | Packaging | Bulk |
| Lens Style | Circular | Mounting Type | Through Hole |
| Mounting Style | Right Angle | Lens Style/Size | Round with Domed Top, 3mm |
| Illumination Color | Green (x 2) | Number of Positions | 8 |
Product Info
| Type | Bi-Level Uni-Color | Lens Type | Diffused |
| Configuration | 2 Single Color LEDs, Bi-Level | Number of LEDs | 2 |
Environmental
| Operating Temperature | 100 | Luminous Flux @ Current/Temperature | 12.6 mcd |
