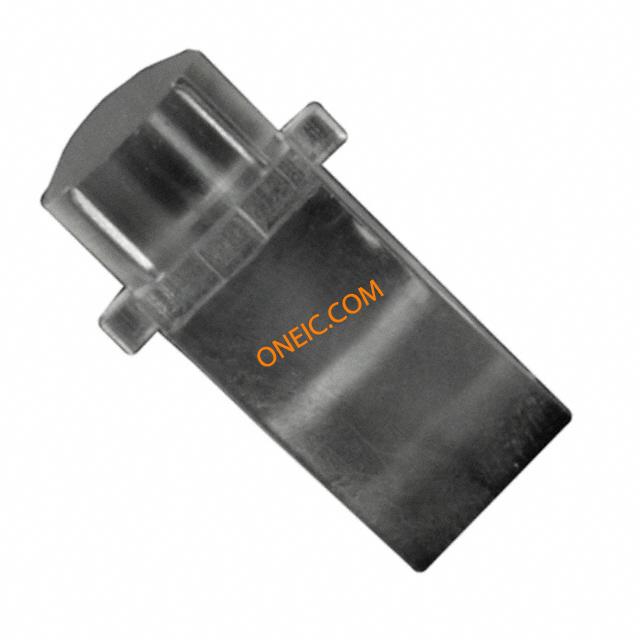

515-1096F
| Manufacturer | |
| Description | LED Light Pipes LIGHT PIPE SINGLE EL Circuit Board Indicators Optical Light Pipes LIGHT PIPE SINGLE ELEMENT LIGHT PIPE, PANEL MOUNTED, 3MM LIGHTPIPESINGLEELEMENT Light guide ø 4 mm;1, 515-1096F, Dialight |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Light Pipes | Product Category | LED Light Pipes |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85414010 |
Electrical
| Optic Size | 4.06 mm | ||
Mechanical
| Color | Clear | Depth | :10.13mm |
| Shape | Round | Width | :5.33mm |
| Length | :10.42mm | Weight | 0.012 |
| Material | Polycarbonate (PC) | Packaging | Bulk |
| Lens Color | :Transparent | Lens Diameter | :4.14mm |
| Mounting Type | Panel Mount, Press Fit, Right Angle | Mounting Style | Panel |
| Lens Style/Size | Round with Flat Top, 3.81mm | Length - Overall | 7.37 mm |
| Number of Positions | :1 | Optic Edge Thickness | :Circular |
Product Info
| Type | Light Pipe | DELETED | Compliant |
| Configuration | Single | For Use With/Related Products | :Surface Mount LED |
Environmental
| Operating Temperature | :100°C | ||
