PFB1224UHE
| Manufacturer | |
| Description | DC Fan Ball Bearing 24V 2A 48W 5500RPM 252.85CFM 66.5dB Flange Mount 24V DC FAN 120X120X38 MM |
| Category |
Business
| Other Names | 603-1461 | Standard Package | 36 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Noise | 66.5 dB(A) | Speed | Clockwise |
| Input Range | 14 to 26.5 | Power (Watts) | 48W |
| Power - Rated | 48 | Voltage Range | 14 ~ 26.5VDC |
| Voltage Rating | 24VDC | Current - Output | 2 |
| Current Rating (Max) | 2A | ||
Mechanical
| RPM | 5500 RPM | Depth | 120 |
| Height | 38 | Weight | 0.838 lb (380.11g) |
| Air Flow | 252.8 CFM (7.16m³/min) | Fan Type | Tubeaxial |
| Termination | Lead Wire | Bearing Type | Ball |
| Mounting Type | Flange Mount | Static Pressure | 1.412 in H2O (351.7 Pa) |
| Housing Material | Plastic | Length - Overall | 120 |
| Material - Blade | Plastic | Material - Frame | Plastic |
| Maximum Pressure | 1.412inH2O | Size / Dimension | Square - 120mm L x 120mm H x 38mm W |
Environmental
| Rated Life | 70000 hrs @ 40°C | Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
Documents & Media
Similar Parts
09123-G
Qualtek
Fan Cords & Accessories 120mm PLASTIC FAN GD PLASTIC FAN GUARD 120MM Fan Accessories 120mm PLASTIC FAN GD Thrml Mgmt Access Fan Guard Plastic FanGuard,Plastic,41/2Inch(120MM)
08218
Qualtek
Fan Cords & Accessories FAN ACCESSORY WIRE FORM FAN GUARD 120MM Fan Accessories FAN ACCESSORY

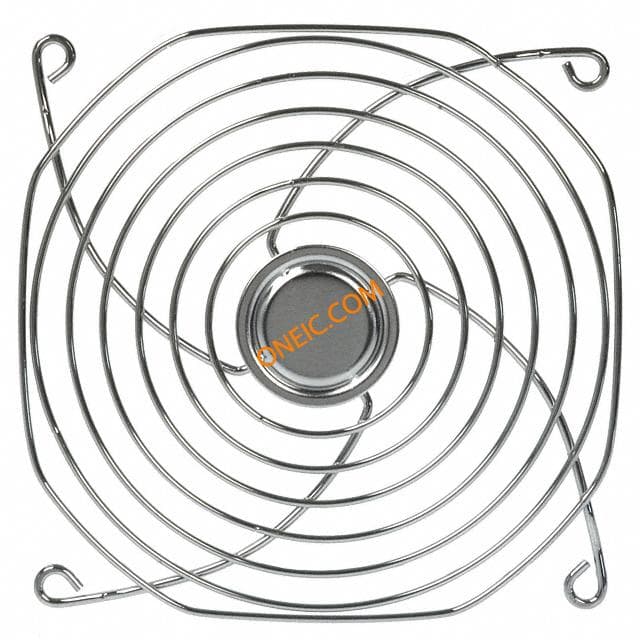

08141
Qualtek
Fan Cords & Accessories WIRE GUARD 120MM FINGER GUARD 120MM METAL Fan Accessories WIRE GUARD 120MM Thrml Mgmt Access Fan Guard 120mm Carbon Steel FINGER GUARD FanGuard;SAE1008;4.5in.;NickelChrome;0.063in.(RingMaterial);7 Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5
G109-15A
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome Fan Accessories Wire FanGuard Chrome for Fan Size 120mm Thrml Mgmt Access Finger Guard 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome

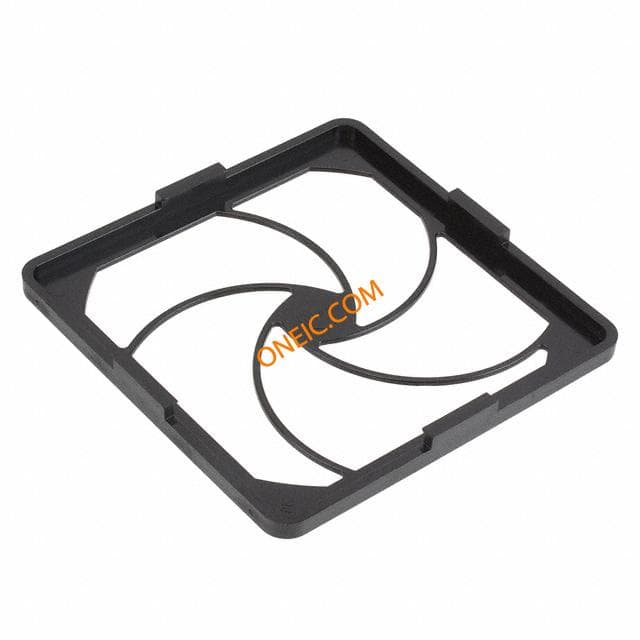

09450-R
Qualtek
Fan Cords & Accessories BLK PLSTC RETAINER PLASTIC FAN GUARD RETAINER 120MM Filter; Fan; 4-1/2 in. Tube Axial Fans; Plastic Fan Accessories BLK PLSTC RETAINER Thrml Mgmt Access Retainer Polybutylene Terephthalate Filter,Fan;4-1/2in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 120 mm - 4 1/2 in. Description: Retainer Only Size Height (in.): 4.87 Size Width (in.): 4.87 Size Thickness (in.): 0.42 Size M/C (in.): --
R87F-FL120S
Omron Electronics
Fan Cords & Accessories TUBE AXIAL FAN-SCREEN FILTER FILTER SCREEN FOR 120MM FANS Fan Accessories TUBE AXIAL FAN-SCREEN FILTER 欧姆龙(OMRON) 伺服电机
08139
Qualtek
Fan Cords & Accessories 120mm WIRE FAN GRD WIRE FORM FAN GUARD 120MM Fan Accessories 120mm WIRE FAN GRD FanGuard;Wire;120mm Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

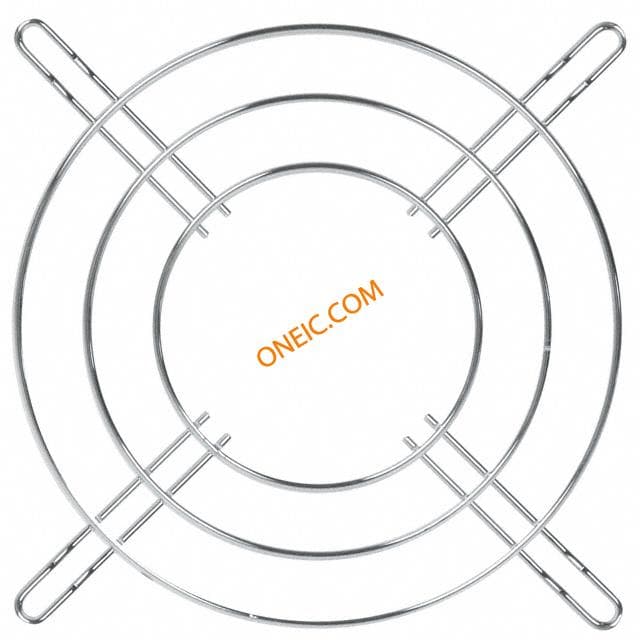

08146
Qualtek
FINGER GUARD 120MM METAL Thrml Mgmt Access Fan Guard 120mm Carbon Steel FINGER GUARD FANGUARD,WIREFORM,120MM,NICKELCHROME Fan Accessories Wire Form Fan Guards Does not meet 1/4" max. ring spacing. For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

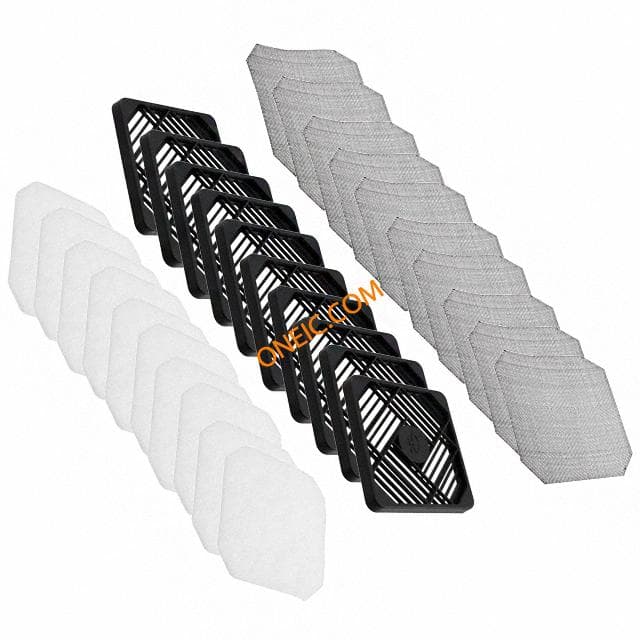

RCP-120-T
Essentra Components
FAN FILTER SET 120X120

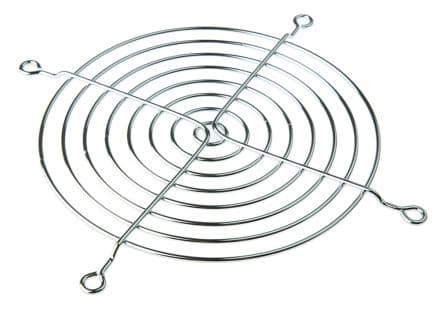

G109-15A
RS
Metal fan finger guard, chrome 120mm

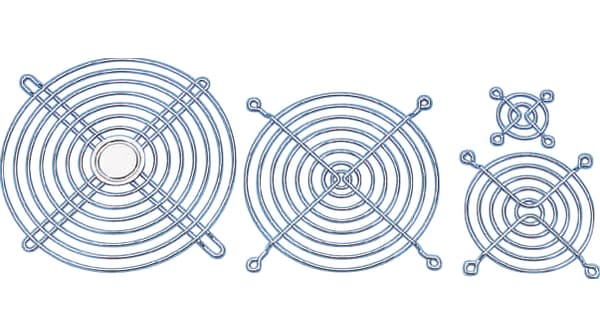

G109-15A
Sinwan
Protective grating 119 x 119 mm, G109-15A, Sinwan

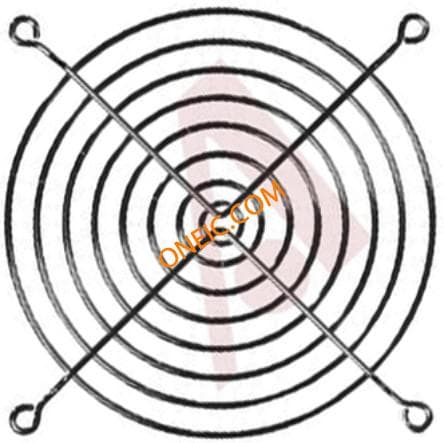

G109-15A
