FFB0948SHE-T500
| Manufacturer | |
| Description | 48V DC FAN 92X92X38 MM |
| Category |
Business
| Standard Package | 48 | ||
Electrical
| Noise | 52.5 dB(A) | Speed | 4400 RPM |
| Power - Max | 9.60W | Power (Watts) | 9.60W |
| Voltage Range | 28 ~ 53VDC | Voltage Rating | 48VDC |
| Current Rating (Max) | 0.200A | Noise Figure (dB Typ @ f) | 52.5 dB(A) |
Mechanical
| RPM | 4400 RPM | Size | Square - 92mm L x 92mm H x 38mm W |
| Weight | 0.436 lb (197.77g) | Air Flow | 100.3 CFM (2.84m³/min) |
| Fan Type | Tubeaxial | Termination | 2 Wire Leads |
| Bearing Type | Ball | Operating Force | 0.572 in H2O (142.5 Pa) |
| Static Pressure | 0.572 in H2O (142.5 Pa) | Material - Blade | Plastic |
| Material - Frame | Plastic | Size / Dimension | Square - 92mm L x 92mm H x 38mm W |
Product Info
| Series | FFB | Features | IP55 |
Similar Parts
LZ23-2
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories PLSTC FINGER GRD FAN GUARD 92MM PLASTIC Fan Accessories PLSTC FINGER GRD

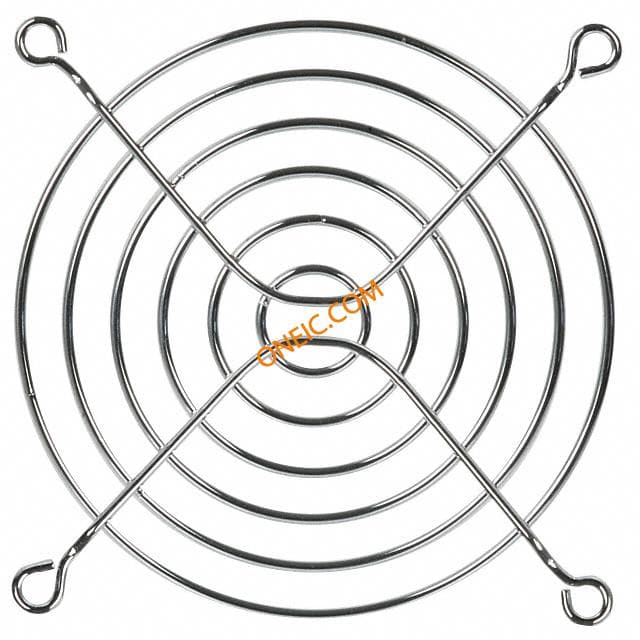

08174
