AFB1224SHE-CR00
| Manufacturer | |
| Description | 24V DC FAN 120X120X38 MM |
| Category |
Business
| Standard Package | 36 | ||
Electrical
| Noise | 55.5 dB(A) | Power (Watts) | 14.9W |
| Voltage Range | 14 ~ 28VDC | Voltage Rating | 24VDC |
| Current Rating (Max) | 0.620A | ||
Mechanical
| RPM | 4100 RPM | Weight | 0.728 lb (330.22g) |
| Air Flow | 190.5 CFM (5.39m³/min) | Fan Type | Tubeaxial |
| Termination | 3 Wire Leads | Bearing Type | Ball |
| Static Pressure | 0.694 in H2O (173.0 Pa) | Material - Blade | Plastic |
| Material - Frame | Plastic | Size / Dimension | Square - 120mm L x 120mm H x 38mm W |
Product Info
| Features | Locked Rotor Sensor | ||
Environmental
| Rated Life | 70000 hrs @ 40°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Documents & Media
Similar Parts
09123-G
Qualtek
Fan Cords & Accessories 120mm PLASTIC FAN GD PLASTIC FAN GUARD 120MM Fan Accessories 120mm PLASTIC FAN GD Thrml Mgmt Access Fan Guard Plastic FanGuard,Plastic,41/2Inch(120MM)
08218
Qualtek
Fan Cords & Accessories FAN ACCESSORY WIRE FORM FAN GUARD 120MM Fan Accessories FAN ACCESSORY

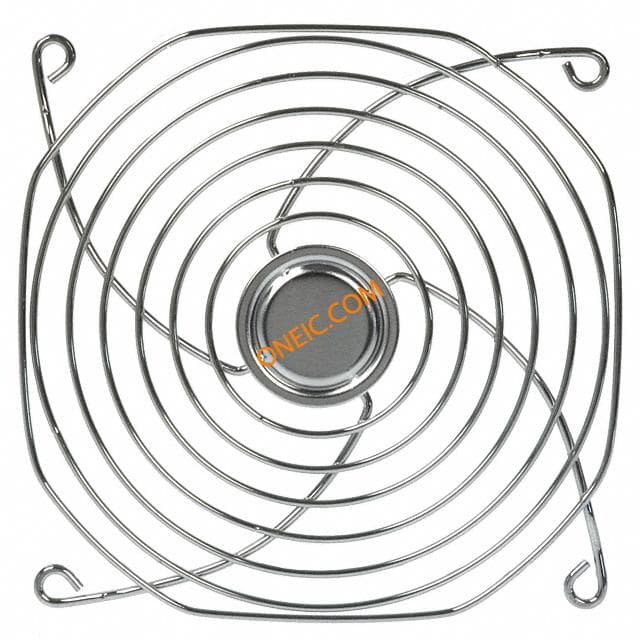

08141
Qualtek
Fan Cords & Accessories WIRE GUARD 120MM FINGER GUARD 120MM METAL Fan Accessories WIRE GUARD 120MM Thrml Mgmt Access Fan Guard 120mm Carbon Steel FINGER GUARD FanGuard;SAE1008;4.5in.;NickelChrome;0.063in.(RingMaterial);7 Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

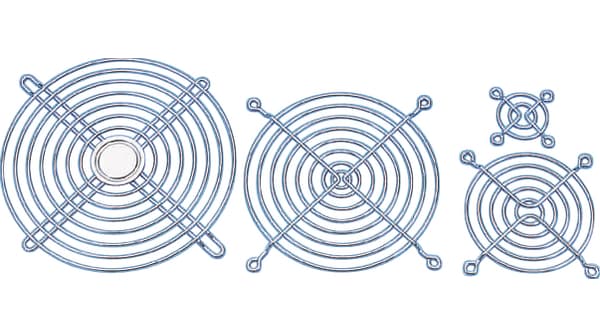

G109-15A
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 120mm FAN GUARD METAL 120MM Fan Guard; Steel (Wire); 4.72 in.; Electroplated Nickel Chrome Fan Accessories Wire FanGuard Chrome for Fan Size 120mm Thrml Mgmt Access Finger Guard 120mm FanGuard;Steel(Wire);4.72in.;ElectroplatedNickelChrome

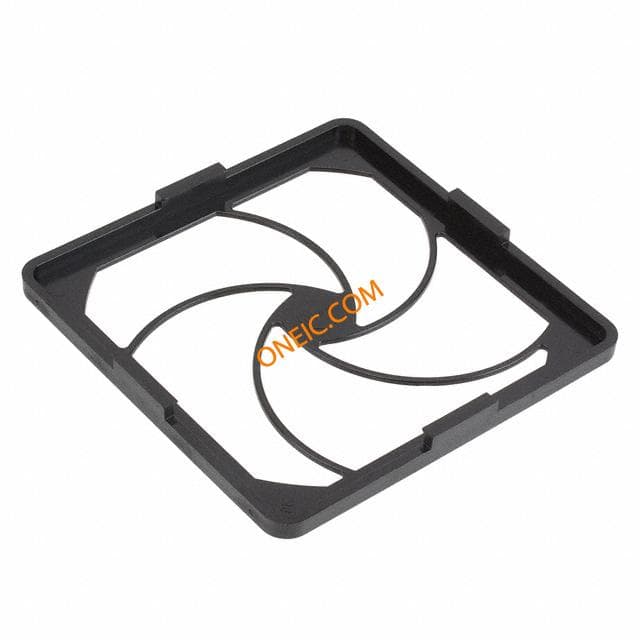

09450-R
Qualtek
Fan Cords & Accessories BLK PLSTC RETAINER PLASTIC FAN GUARD RETAINER 120MM Filter; Fan; 4-1/2 in. Tube Axial Fans; Plastic Fan Accessories BLK PLSTC RETAINER Thrml Mgmt Access Retainer Polybutylene Terephthalate Filter,Fan;4-1/2in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 120 mm - 4 1/2 in. Description: Retainer Only Size Height (in.): 4.87 Size Width (in.): 4.87 Size Thickness (in.): 0.42 Size M/C (in.): --
R87F-FL120S
Omron Electronics
Fan Cords & Accessories TUBE AXIAL FAN-SCREEN FILTER FILTER SCREEN FOR 120MM FANS Fan Accessories TUBE AXIAL FAN-SCREEN FILTER 欧姆龙(OMRON) 伺服电机
08139
Qualtek
Fan Cords & Accessories 120mm WIRE FAN GRD WIRE FORM FAN GUARD 120MM Fan Accessories 120mm WIRE FAN GRD FanGuard;Wire;120mm Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

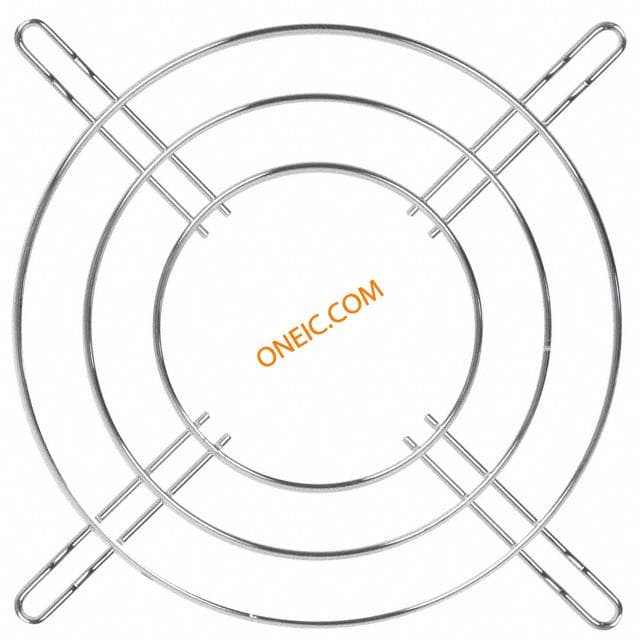

08146
