AFB0812HB
| Manufacturer | |
| Description | FAN DC AXIAL 12V 80X15 3100RPM DC Fan Ball Bearing 12V 0.14A 1.68W 3100RPM 33.55CFM 34dB Flange Mount |
| Category |
Business
| Other Names | 603-1182 | Standard Package | 168 |
Compliance
| Rad Hardened | No | ||
Electrical
| Noise | 34 dB(A) | Speed | Clockwise |
| Frequency | Not Required | Input Range | 7V to 13.8V |
| Noise Figure | 34 dB | Power (Watts) | 1.68W |
| Power - Rated | 1.68 W | Voltage Range | 7 ~ 13.8VDC |
| Voltage Rating | 12VDC | Current - Supply | 0.14 A |
| Current Rating (Max) | 0.140A | ||
Mechanical
| RPM | 3100 RPM | Depth | 80 mm |
| Height | 15 mm | Weight | 0.128 lb (58.06g) |
| Air Flow | 33.5 CFM (0.949m³/min) | Diameter | Not Required mm |
| Fan Type | Tubeaxial | Termination | 2 Wire Leads |
| Bearing Type | Ball | Mounting Style | Flange |
| Static Pressure | 0.138 in H2O (34.4 Pa) | Housing Material | Plastic |
| Length - Overall | 80 mm | Material - Blade | Plastic |
| Material - Frame | Plastic | Size / Dimension | Square - 80mm L x 80mm H x 15mm W |
Product Info
| Type | DC Fan | ||
Documents & Media
Similar Parts
WMG80M
Orion Fans
Fan Cords & Accessories Guard 80mm Mill Mesh Filter Media FAN GUARD 80MM WIRE MESH NATURAL Mesh Guard; Wire Mesh; For 60mm; 80mm; 92mm; 120mm; and 172mm Fans; Filters Fan Accessories WireMeshGuard 80mm Mill Finish Filter Thrml Mgmt Access Fan Filter Screen 80mm Aluminum/Stainless Steel MeshGuard;WireMesh;For60mm,80mm,92mm,120mm,and172mmFans,Filters

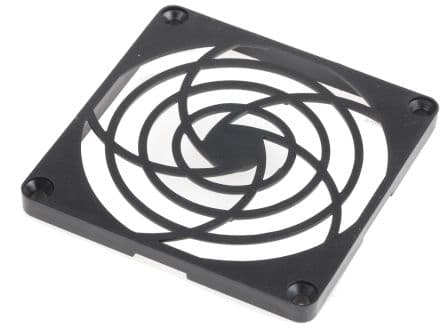

G80P
Orion Fans
Fan Cords & Accessories Plastic Fan Guard for Fan Size 80mm FAN GUARD PLASTIC 80MM Fan;Finger Guard;Plastic;PBT;UL94V-0 Thermoplastic;80mm (3.15 in) Fan Accessories Plastic Fan Guard for Fan Size 80mm Fan,FingerGuard,Plastic,PBT,UL94V-0Thermoplastic,80mm(3.15in)

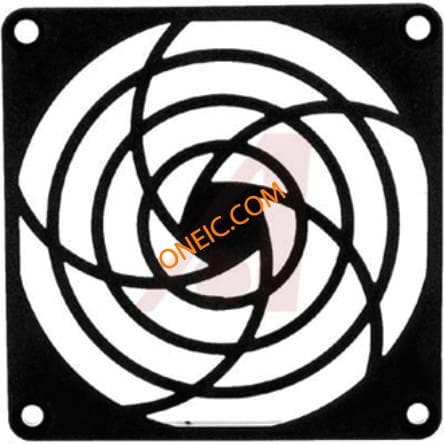

G80P
