AFB0612EH-ABRR0
| Manufacturer | |
| Description | 12V DC FAN 60X60X25.4 MM |
| Category |
Business
| Standard Package | 180 | ||
Electrical
| Noise | 46.5 dB(A) | Power (Watts) | 4.56W |
| Voltage Range | 4 ~ 13.8VDC | Voltage Rating | 12VDC |
| Current Rating (Max) | 0.380A | ||
Mechanical
| RPM | 6800 RPM | Weight | 0.176 lb (79.83g) |
| Air Flow | 38.3 CFM (1.09m³/min) | Fan Type | Tubeaxial |
| Termination | 3 Wire Leads | Bearing Type | Ball |
| Static Pressure | 0.544 in H2O (135.5 Pa) | Material - Blade | Plastic |
| Material - Frame | Plastic | Size / Dimension | Square - 60mm L x 60mm H x 25.4mm W |
Product Info
| Features | Locked Rotor Sensor | ||
Environmental
| Rated Life | 70000 hrs @ 40°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Documents & Media
Similar Parts
QSB-60-01
Qualtek
Fan Cords & Accessories 60mm EMI FILTR SHLD FILTER GUARD EMI 60MM Fan Accessories 60mm EMI FILTR SHLD EMI FILTER SHIELD Fan Accessories Fan Silencer and Accessories EMI Filter Shields Fan Size: 60 Material: High-grade steel (spring V2a) / Material No. 1.4310 Material Thickness: 0.2mm to 0.3mm

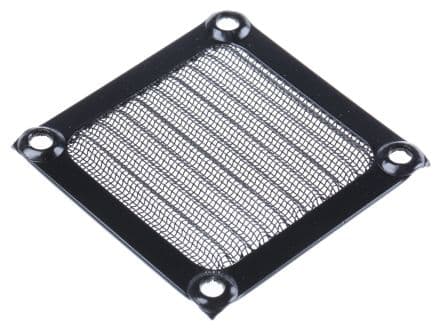

WMG60B
