AFB0512MB
| Manufacturer | |
| Description | DC Fan Ball Bearing 12V 0.08A 0.96W 4800RPM 12.36CFM 28dB Flange Mount 12V DC FAN 50X50X15 MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 603-1517 | Standard Package | 336 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Noise | 28 dB(A) | Speed | Clockwise |
| Input Range | 7 to 13.8 | Power (Watts) | 0.96W |
| Power - Rated | 0.96 | Voltage Range | 7 ~ 13.8VDC |
| Voltage Rating | 12VDC | Current - Output | 0.08 |
| Current Rating (Max) | 0.080A | ||
Mechanical
| RPM | 4800 RPM | Depth | 50 |
| Height | 15 | Weight | 0.071 lb (32.21g) |
| Air Flow | 12.4 CFM (0.351m³/min) | Fan Type | Tubeaxial |
| Termination | Lead Wire | Bearing Type | Ball |
| Mounting Type | Flange Mount | Static Pressure | 0.181 in H2O (45.1 Pa) |
| Housing Material | Plastic | Length - Overall | 50 |
| Material - Blade | Plastic | Material - Frame | Plastic |
| Maximum Pressure | 0.181inH2O | Size / Dimension | Square - 50mm L x 50mm H x 15mm W |
Environmental
| Rated Life | 70000 hrs @ 40°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Documents & Media
PDF Document
Similar Parts

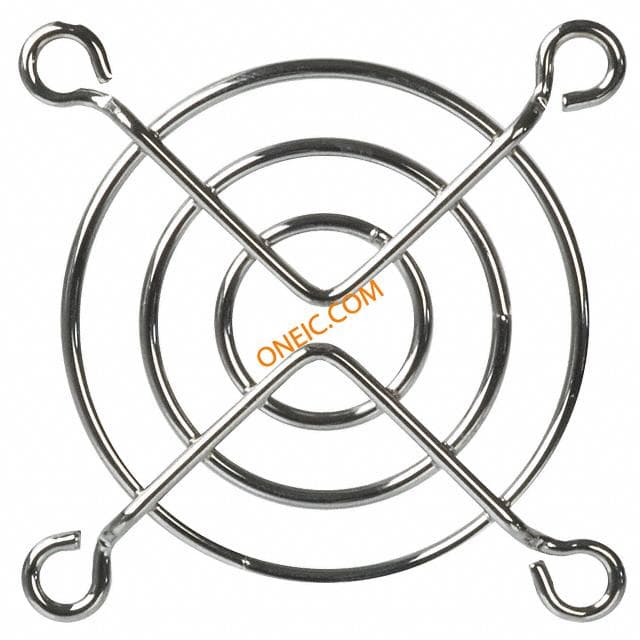

08248
