CSS-0575A-SMT
| Manufacturer | |
| Description | BUZZER MAGNETIC 3V 5MM SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 102-2201-6 | Standard Package | 2,500 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Frequency | 4kHz | Input Type | zero-peak Signal |
| Voltage Range | 2 ~ 4V | Operating Mode | Continuous |
| Voltage Rating | 3Vo-p | Current - Output | 110mA |
| Driver Circuitry | Transducer, Externally Driven | Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
Mechanical
| Packaging | Tape & Reel (TR) | Termination | Solder Pads |

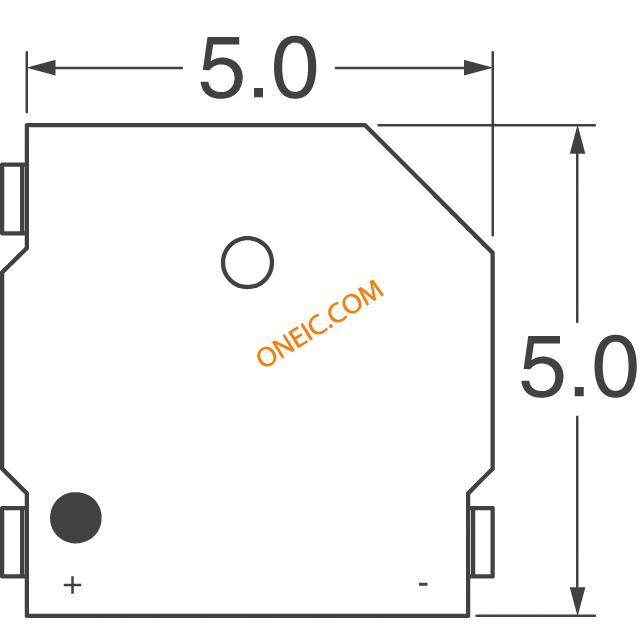

| Mounting Type | Surface Mount | Size / Dimension | Square - 5.00mm L x 5.00mm W x 2.40mm H |
Product Info
| Washable | No | Technology | Magnetic |
Environmental
| Operating Temperature | -30°C ~ 70°C | ||
