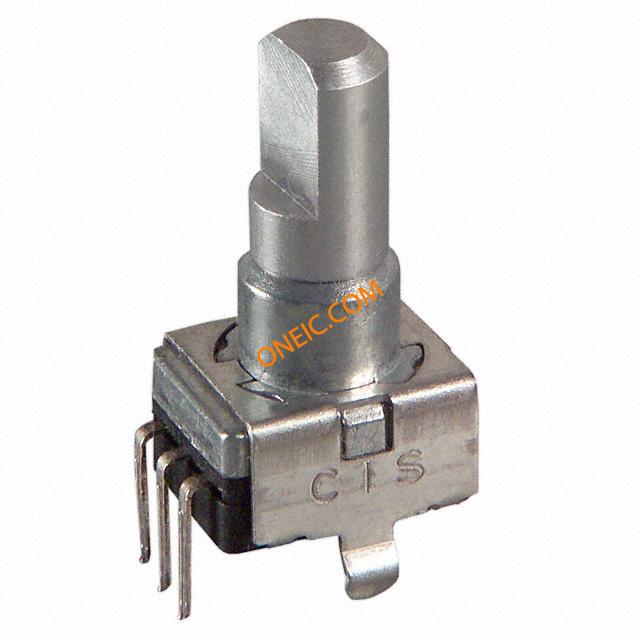

290VAA5F201A2
| Manufacturer | |
| Description | エンコーダ 15mm Flatted 20 Detents Encdr ENCODER 2 BIT QUAD W/DETENTS Encoders 15mm Flatted 20 Detents Encdr |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Mechanical Encoders | メーカ | CTS |
| Product Category | Encoders | Standard Package | 250 |
Compliance
| RoHS | RoHS 認証 | ||
Electrical
| Resolution | 20 PPR | Output Type | Quadrature (Incremental) |
| Voltage - Supply | 12 V | ||
Mechanical
| Orientation | Vertical | Shaft Detail | Flatted |
| Actuator Type | 6mm Dia Flatted End | Mounting Type | PCB, Through Hole |
| Termination Rows | 20 | Termination Style | PC Pin |
| Number of Positions | 20 | Rotational Life (Cycles Min) | 50K |
Product Info
| Detent | Yes | Encoder Type | Mechanical |
| Product Type | Mechanical Encoders | Card Standard | エンコーダ |
| Built in Switch | No | Other Specifications | Yes |
| Pulses per Revolution | 20 | ||
Environmental
| Operating Temperature | - 30 C to + 70 C | Operating Temperature - Junction | - 30 C to + 70 C |
