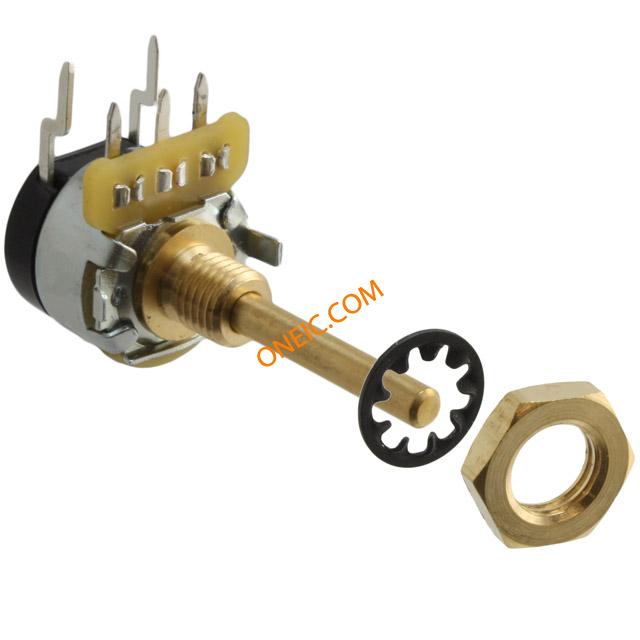

270X232A103B1B1

Manufacturer	CTS Corporation
Description	Potentiometers 10Kohms 20% Linear SPST Rotary ポテンショメータ 10Kohms 20% Linear SPST Rotary POT 10K OHM 1/4W CARB LNR W/SW
Category	Resistors and PotentiometersRotary PotentiometersRotary Potentiometers

对参数有疑问？问 AI 助手

Business

Product	Switch Potentiometer	メーカ	CTS
Part # Aliases	XS8777	Product Category	Potentiometers
Standard Package	1

Compliance

RoHS

RoHS Compliant

Electrical

Speed	1	Tolerance	20 %
Resistance	10 kOhms	Power (Watts)	0.25W, 1/4W
Power - Rated	250 mW (1/4 W)	Voltage Rating	500 V
Resistance (Ohms)	10k	Power - Peak Pulse	250 mW (1/4 W)
Resistance - Input	10 kOhms

Mechanical

Pitch	Linear	Taper	Linear
Rotation	300°	Packaging	Bulk
End - Size	Pin	Shaft Size	25.4 mm
Size - Body	Round - 0.626" Dia x 0.525" L (15.90mm x 13.34mm)	Shaft Detail	Round / Plain
Actuator Type	Round Shaft	Mounting Type	Through Hole
Mounting Style	Through Hole	Shaft Diameter	3.18 mm
Actuator Length	1.000" (25.40mm)	Actuator Diameter	0.125" (3.18mm)
Termination Style	Pin	Resistive Material	Carbon
Length - Shaft and Bearing	25.4 mm

Product Info

Product Type	Switch Potentiometer	Card Standard	ポテンショメータ
Adjustment Type	Side Adjustment	Number of Turns	1
Equipment Part Numbers	XS8777

Documents & Media


270X232AxxxB(1,2)B1 Footprint

PDF Document

270 Series Pots

PDF Document

270.pdf
