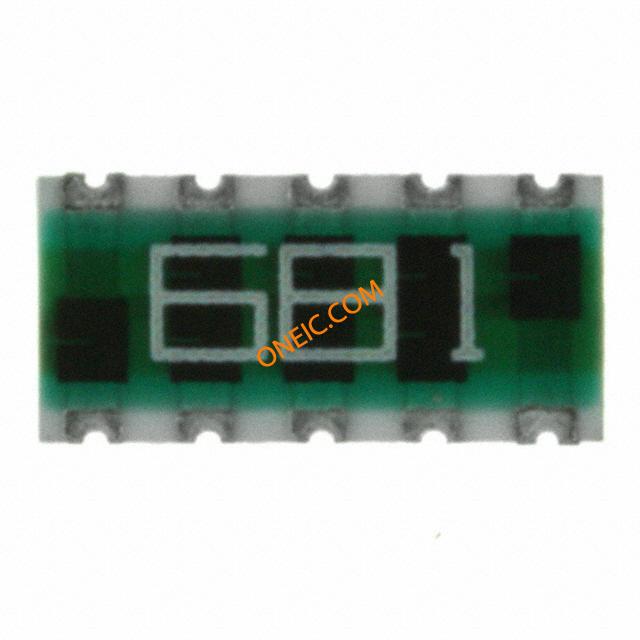

745C101681JP
| Manufacturer | |
| Description | Res Thick Film Array 680 Ohm 5% 1/2W ±200ppm/°C BUS Molded 10-Pin 2512 Concave SMD Plastic T/R Resistor Networks & Arrays 680ohms 50V 5% RES ARRAY 680 OHM 8 RES 2512 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 745C101681JPTR | Product Category | Resistor Networks & Arrays |
| Standard Package | Tape & Reel | Factory Pack Quantity | 4000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | 5 % | Resistance | 680 Ohm |
| Power - Rated | 1/2 W | Circuit Pattern | BUS |
| Resistor Values | 680 Ohms | Power Per Element | 0.504 W |
| Resistance (Ohms) | 680 | Number of Resistors | 8 |
Mechanical
| Width | 3.2 mm | Height | 0.028" (0.70mm) |
| Packaging | Reel | Mounting Type | Surface Mount |
| Number of Pins | 10 | Package / Case | 2512 (6432 Metric), Concave, Long Side Terminals |
| Package Cooled | SMD | Size / Dimension | 3.2 mm W x 6.4 mm L x 0.6 mm H |
| Termination Style | SMD/SMT | Number of Contacts | 10 |
Product Info
| Type | Array | Series | 74x |
| Technology | Thick Film | Circuit Type | Bussed |
| Product Type | Arrays | ||
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±200 ppm/°C |
