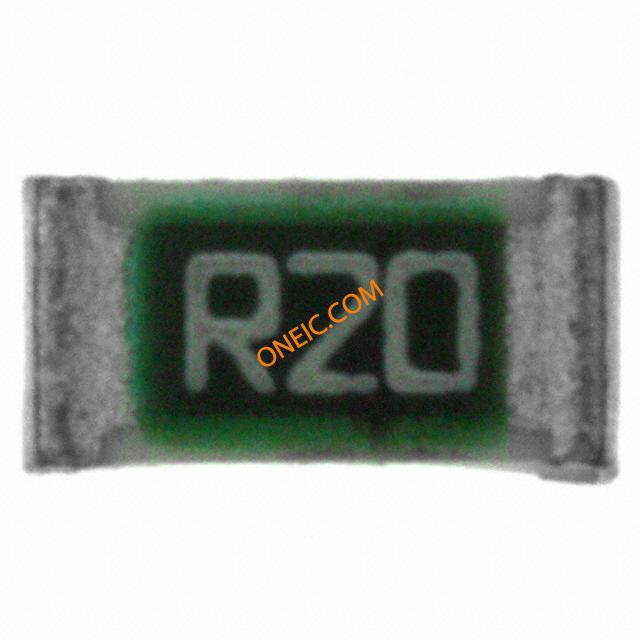

73L4R20J
| Manufacturer | |
| Description | Res Thick Film 1206 0.2 Ohm 5% 1/4W ±200ppm/°C Molded SMD SMD Paper T/R Current Sense Resistors - SMD 0.2ohms 5% 電流検出抵抗器 - SMD 0.2ohms 5% Res Thick Film 1206 0.2 Ohm 5% 0.25W(1/4W) ±200ppm/°C Molded SMD Paper T/R RES .20 OHM 1/4W 5% 1206 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Thick Film Current Sensing Resistors | メーカ | CTS |
| Other Names | 73L4R20JTR | Product Category | Current Sense Resistors - SMD |
| Standard Package | Tape & Reel | Factory Pack Quantity | 5000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Tolerance | 5 % | Fail Short | No |
| Resistance | 200 mOhm | Power (Watts) | 0.25W, 1/4W |
| Power - Rated | 1/4 W | Current - Sensing | No |
| Resistance (Ohms) | 0.2 | Power - Peak Pulse | 250 mW (1/4 W) |
| Resistance - Input | 200 mOhms | ||
Mechanical
| Size | 1.6 mm W x 3.2 mm L x 0.55 mm H | Depth | 1.6 |
| Width | 1.6 mm | Height | 0.028" (0.70mm) |
| Packaging | Reel | End - Size | SMD/SMT |
| Size - Body | 3.2 mm | Height (Max) | 0.55 mm |
| Mounting Type | Surface Mount | Package / Case | 1206 |
| Length - Overall | 3.2 | Size / Dimension | 1.6 mm W x 3.2 mm L x 0.55 mm H |
| Termination Style | SMD/SMT | Mounting Hole Diameter | 1206 |
| Number of Terminations | 2 | Supplier Device Package | 1206 |
| Wire Gauge or Range - AWG | 3216 | Wire Gauge or Range - mm2 | 1206 |
Product Info
| Type | Thick Film | Series | 73L |
| Features | Current Sense | Technology | Thick Film |
| Composition | Thick Film | Product Type | Thick Film Current Sensing Resistors |
| Card Standard | 電流検出抵抗器 - SMD | Number of Units | 5000 |
Environmental
| Surge Rating (Watts) | No | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±200 ppm/°C | Operating Temperature - Junction | - 55 C to + 125 C |
