Business

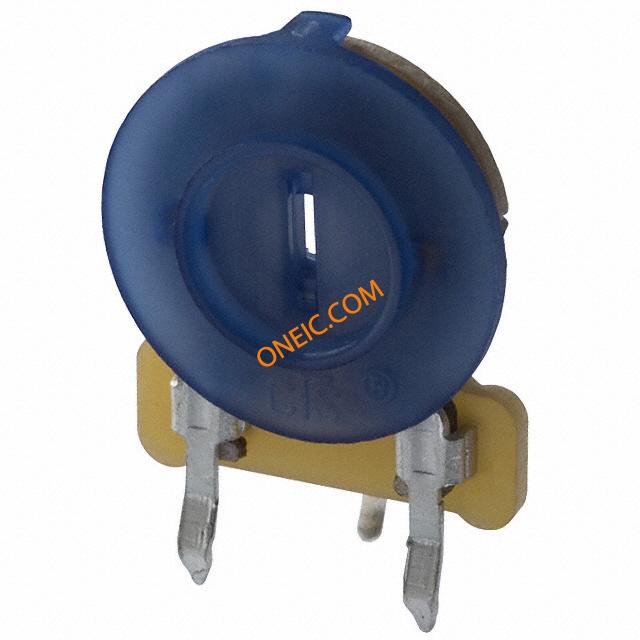

| Product | Trimmer Resistors - Single Turn | メーカ | CTS |
| Other Names | X201R503B | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | 20 % | Resistance | 50 KOhm |
| Element Type | Composition | Power (Watts) | 0.25W, 1/4W |
| Power - Rated | 1/5 W | Resistance (Ohms) | 50k |
| Power - Peak Pulse | 250 mW (1/4 W) | Resistance - Input | 50 kOhms |
| Ratio - Input:Output | Composition | ||
Mechanical
| Packaging | Bulk | End - Size | Quick Connect |
| Mounting Type | Through Hole | Package / Case | Bulk |

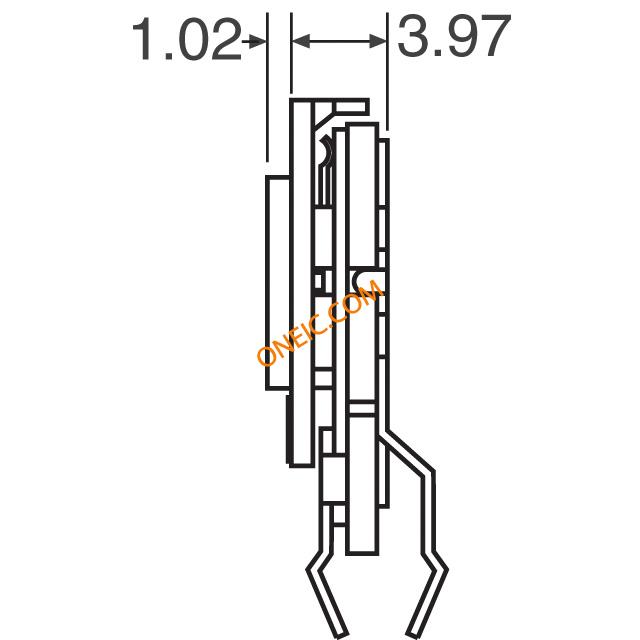

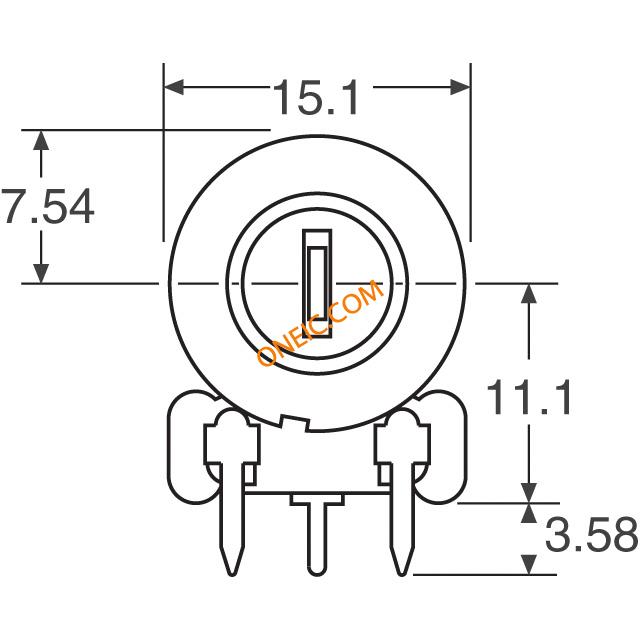

| Size / Dimension | Square - 0.734" L x 0.594" W x 0.196" H (18.64mm x 15.10mm x 4.98mm) | Termination Style | Quick Connect |
| Resistive Material | Carbon | ||
Product Info
| Type | Trimmer | Technology | Carbon Composition |
| Product Type | Single Turn | Card Standard | トリマーレジスタ：スルーホール |
| Adjustment Type | Side Crossed | Number of Turns | 1(Elec)|1(Mech) Turns |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- X201 Series Bottom
