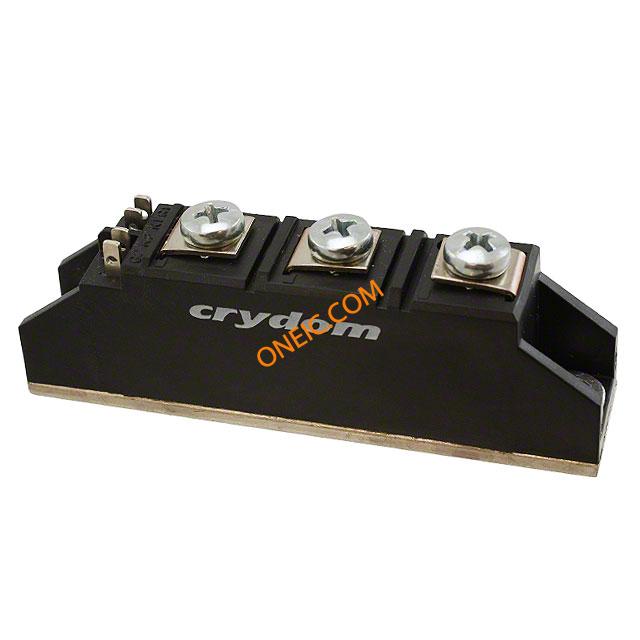

F1857SD1200
| Manufacturer | |
| Description | Discrete Semiconductor Modules 1200VP 480VAC SCR DIODE MOD MODULE SCR/DIODE 55A 480VAC Thyristor SCR Module 1.2KV 1.5KA 7-Pin Module,Power;DualSCR;Series;Cur-Rtg55A;V-Rtg480AC;Pk-V-Rtg1200AC Power Modules Type: SCR Module Load Current (DC): 55 Amps Load Voltage: 380 VAC Mounting: --- Optional Diode: No |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Diode Power Modules | Lead Time | 56 Days |
| Subcategory | Thyristor | Product Category | Discrete Semiconductor Modules |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage - Load | 380 VAC | Current - Output | 55 A |
| Voltage - Supply | 1.4 V | Diode Configuration | No |
| LED Forward Current | 1500A | Voltage - Isolation | 2500VRMS |
| Voltage - Threshold | 3V | Current Rating (Max) | 55A |
| Voltage - Supply (Min) | 480VAC | Voltage - Peak Reverse (Max) | 1200VAC |
| Current - DC Forward (If) (Max) | 55 Amps | Current - Gate Trigger (Igt) (Max) | 150 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 480 V | ||
Mechanical
| Mounting Type | --- | Mounting Style | Screw |
| Package / Case | Module | Primary Material | Module |
Product Info
| Type | Dual SCR Module | Series | F18 |
| Manufacturer | Crydom | Card Standard | Power Modules |
| Configuration | Common Anode 2 SCRs | ||
Environmental
| Thermal Resistance | 0.250 | Operating Temperature | - 40 C to + 125 C |
| Operating Temperature - Junction | -40to125°C | ||
