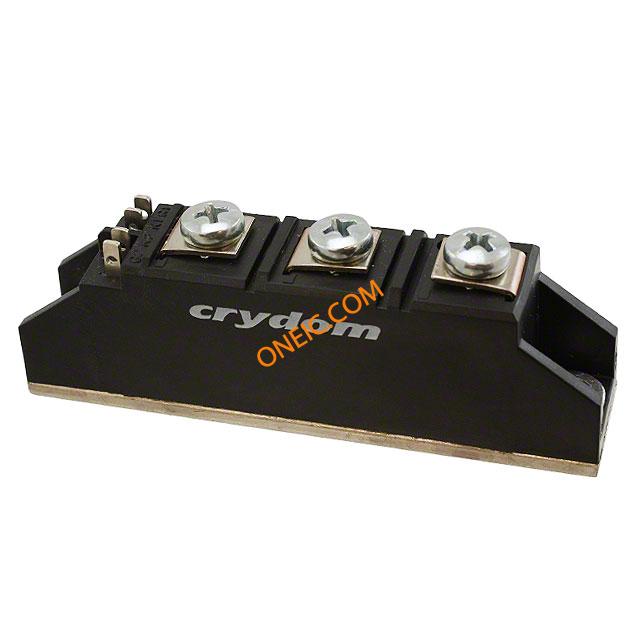

F1842SD1200
| Manufacturer | |
| Description | Discrete Semiconductor Modules SCR/DIODE MODULE MODULE SCR/DIODE 40A 480VAC Thyristor SCR Module 1.2KV 1KA 7-Pin Module;Diode;40amps;SDcircuit;480VAC Power Modules Type: SCR Module Load Current (DC): 40 Amps Load Voltage: 380 VAC Mounting: --- Optional Diode: No |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | Thyristor |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage - Load | 380 VAC | Current - Surge | 1000A |
| Voltage - Supply | 1.4V | Diode Configuration | No |
| LED Forward Current | 1000A | Resistance @ 25degC | 0.28°C/W |
| Voltage - Isolation | 2500VRMS | Voltage - Threshold | 3V |
| Current Rating (Max) | 40A | Voltage - Supply (Min) | 480VAC |
| Current - Timekeeping (Max) | 4150A2s | Voltage - Peak Reverse (Max) | 1200VAC |
| Current - DC Forward (If) (Max) | 40 Amps | Current - Peak Pulse (10/1000us) | 40A |
| Current - Gate Trigger (Igt) (Max) | 150mA | ||
Mechanical
| Mounting Type | --- | Package / Case | CaseF23 |
| Primary Material | Module | ||
Product Info
| Type | SCR Module | Card Standard | Power Modules |
Environmental
| Thermal Resistance | 0.28 | Operating Temperature | -40to+125°C |
