20LPCV2425
| Manufacturer | |
| Description | Solid State Relays - Industrial Mount Lin.Prop.Contr. 300 Vac/25A 4-20mA CONTROLLER LOAD .10-25A 4-20MA Controller; 0.10 to 25 A; 20 to 300 VAC; 2500 V (RMS); 250 Apk (Max.); 2.21 in. Linear Proportional Load Controller 7-Pin Controller;0.10to25A;20to300VAC;2500V(RMS);250Apk(Max.);2.21in. Linear Proportional Controller Control Range: 4-20 mA Load Current: 25 Amps Line Voltage: 20-300 VAC |
| Category |
Business
| Lead Time | 56 Days | Subcategory | Power Misc |
| Standard Package | 5 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | SCR | Circuit | SPST-NO (1 Form A) |
| Output Type | AC, Linear Controlled | Load Current | 25A |
| Voltage - Load | 20 ~ 300 V | RAM Controllers | 4-20 mA |
| Voltage - Supply | 20-300 VAC | Current Rating (Max) | 25 A |
| Voltage - Input (Min) | 4 ~ 20mA | Voltage - Supply (Min) | 20 VAC to 300 VAC |
Mechanical
| Packaging | Bulk | Mounting Type | Chassis Mount or Panel Mount |
| Mounting Style | Panel | Package / Case | Module |
| Termination Style | Screw | ||
Product Info
| Type | Controllers | Series | LPCV |
| Relay Type | Relay | Product Type | Industrial Mount |
| Card Standard | Linear Proportional Controller | ||
Documents & Media
Similar Parts
HS301DR
Crydom
Heat Sinks 3.0 C/W DIN RM Heat Sink - 1 SSR Heat Sink Passive DIN Rail Aluminum 3°C/W HEATSINK SSR 3.0DEG C/W DIN MNT DIN Rail Solid State Relay Heatsink HEATSINK, DIN MOUNT, 3DEG C/W HEATSINK,DINRAIL,3.0C/W,-1SSR Heat Sink 3 °C/W, HS301DR, Crydom DIN 轨安装 固态继电器散热片
HS351DR
Crydom
Heat Sinks 3.5 C/W DIN RM Heat Sink - 1 SSR Heat Sink Passive DIN Rail Mount Aluminum 3.5°C/W Black Anodized HEATSINK SSR 3.5DEG C/W DIN MNT DIN Rail Solid State Relay Heatsink HEATSINK,DINRAIL,3.5C/W,-1SSR
HS501DR
Crydom
Heat Sinks 5.0 C/W DIN RM Heat Sink - 1 SSR Heat Sink Passive DIN Rail Steel 5°C/W Yellow Zinc HEATSINK SSR 5.0DEG C/W DIN MNT DIN Rail Solid State Relay Heatsink For Use With 1 x single or dual SSR HEATSINK, DIN MOUNT, 5DEG C/W HEATSINK,DINRAIL,5.0C/W,-1SSR Heat Sink 5 °C/W, HS501DR, Crydom DIN 轨安装 固态继电器散热片, 适用于1 个单或双固态继电器
TRM6
Crydom
Relay Sockets & Hardware Copper Lug Terminal COPPER LUG TERMINAL Solid State Relay Lug Terminal For Use With Screw Terminal Lug Terminal 6-14AWG 25.4mm 11.48mm ACCESSORY,COPPERLUGTERMINAL TRM6 Series 14-6 AWG Panel Mount Copper Lug Terminal 固态继电器接线片端子, 适用于螺钉接线端子

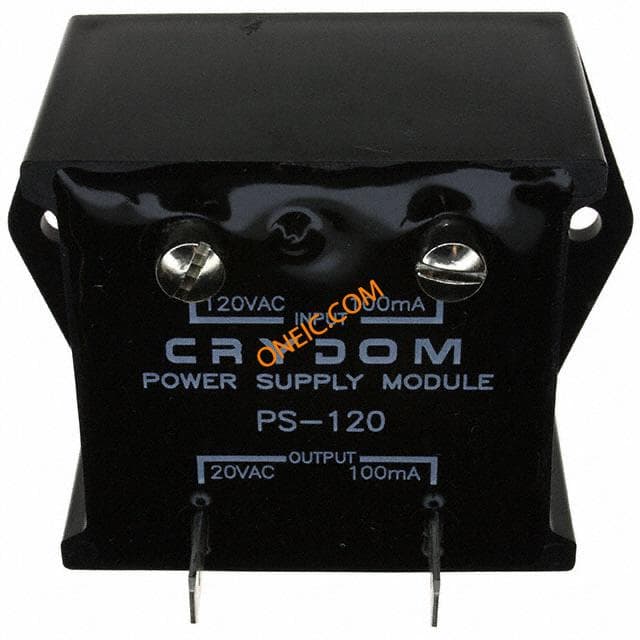

PS-120
