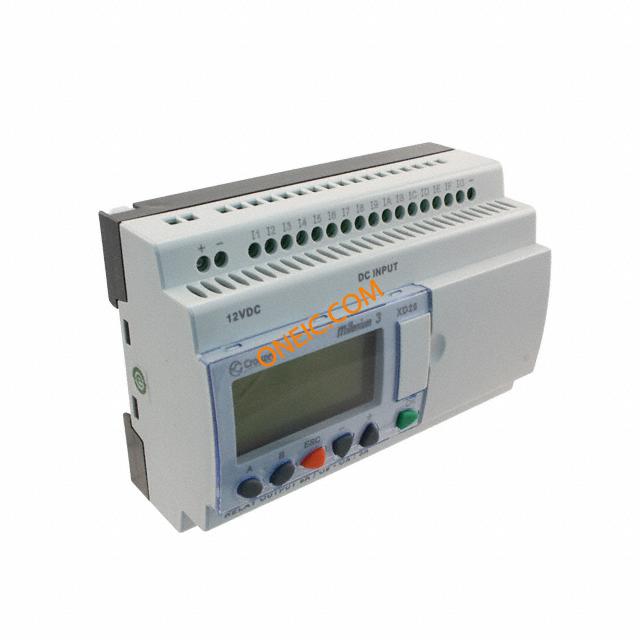

88974165
| Manufacturer | |
| Description | Controllers M3 CUSTOM XD26 1 2VDC EXPAN RLY OUT CONTROL LOGIC 26 I/O 12VDC LOGIC CONTROLLER; MILLENIUM 3C; 16/10 RELAY; 6 ANALOG INPUT; 12VDC Millenium 3 Logic Controller Smart Expandable Range With Display LOGICCONTROLLER;MILLENIUM3C;16/10RELAY;6ANALOGINPUT;12VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88974165-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA |
| Approval Agency | CSA, GL, UL | ||
Electrical
| Memory | EEPROM | Output | Relay |
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Number of Inputs | 16 | Voltage - Supply | 12 VDC |
| Number of Outputs | 10 | Number of Outputs and Type | 10 - Relay |
Mechanical
| Size | 124.6 mm x 90 mm x 58 mm | Height | 2.28" (58mm) |
| Termination | Screw | Mounting Type | DIN Rail |
| Mounting Style | Panel | Primary Material | Controller |
| Size / Dimension | 124.6mmL×90mmH×59.5mmD | Terminal Block Type | Screw |
Product Info
| Type | Expandable Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Software | M3 |
| Expandable | Yes | Manufacturer | XD26Series |
| Control Method | Stored program control | Other Specifications | Yes - Lithium |
| Number of Inputs and Type | 16 - Digital (6 - Analog) | ||
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
