| Manufacturer | |

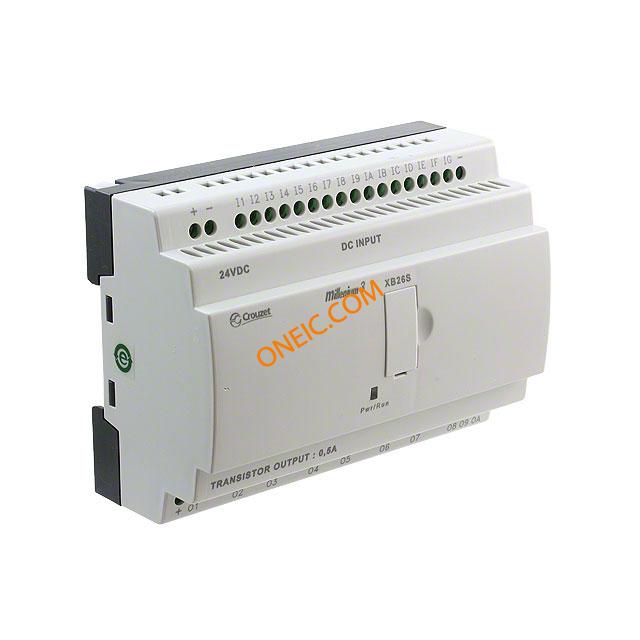

| Description | Controllers M3CUSTOM XB26 CONTROL LOGIC 26 I/O 24VDC Millenium 3 Logic Controller Smart Expandable Range With Display Controller,Expandable,SolidStateOutput,XB26Smart,24VDC,Millenium3 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88974152-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, CSA, UL |
Electrical
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Number of Inputs | 16 | Voltage - Supply | 24 VDC |
| Number of Outputs | 10 | Number of Outputs and Type | 10 - Solid State (4 - PWM) |
Mechanical
| Size | 124.6 mm x 90 mm x 57.5 mm | Height | 2.26" (57.4mm) |
| Mounting Type | DIN Rail | ||
Product Info
| Type | Expandable Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Software | M3 |
| Expandable | Yes | Control Method | Stored program control |
| Other Specifications | Yes - Lithium | Number of Inputs and Type | 16 - Digital (6 - Analog) |
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 70°C | ||
