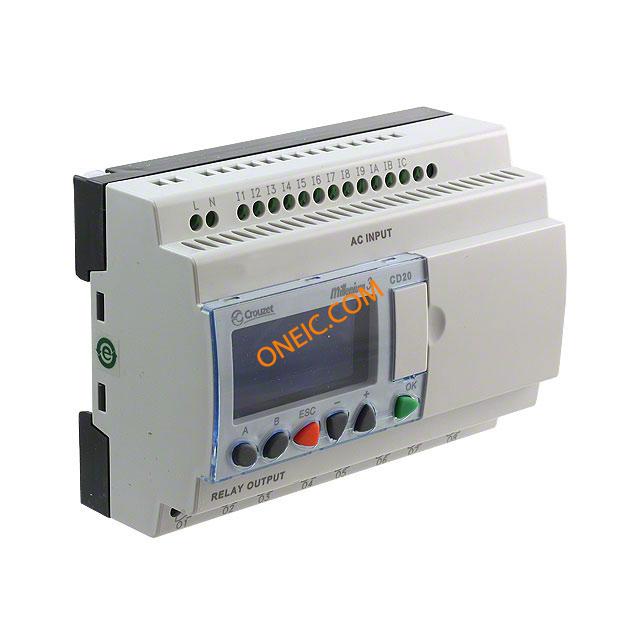

88974054
| Manufacturer | |
| Description | Controllers M3 CUSTOM CD20R 12/8 24VAC CONTROL LOGIC 20 I/O 24VDC MILLENIUM 3 SMART CD20 - 12I/8O R 24VAC CONTROL LOGIC 24VDC to 24VAC KIT,Millenium3,SMARTControllerSoftware,CD20R24VAC Crouzet Millenium 3 逻辑控制, 12 x 输入, 8 x 输出, 24 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88974054-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, CSA, UL |
Electrical
| Memory | 368（数据存储器） bits | Indicator | Yes |
| Interface | Front Panel | Input Type | Digital |
| EEPROM Size | 368 bits | Memory Size | 368 bits/200 words |
| Output Type | Relay | Display Type | LCD Display |
| Response Time | 10ms Make, 5ms Release | Operating Mode | Program |
| Current - Output | 12 A | Number of Inputs | 12 |
| Voltage - Supply | 24 VAC | Number of Outputs | 8 |
| Program Memory Size | 368 bits | Current Rating (Max) | 12 A |
| Number of Outputs and Type | 8 - Relay | ||
Mechanical
| Size | 124.6 mm x 90 mm x 58 mm | Depth | 68mm |
| Width | 71.2mm | Height | 2.28" (58mm) |
| Length | 100mm | Mounting Type | DIN Rail |
Product Info
| Type | Compact Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Includes | Yes |
| Language | 梯形逻辑 | Software | M3 |
| Expandable | No | CAD Drawing | 3D CAD 模型 |
| Programmable | Ladder Logic | Adapter Series | 889 Series |
| Control Method | Stored program control | Other Specifications | Yes - Lithium |
| Number of Inputs and Type | 12 - Digital | For Use With/Related Products | CD20 Series |
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 70°C | ||
