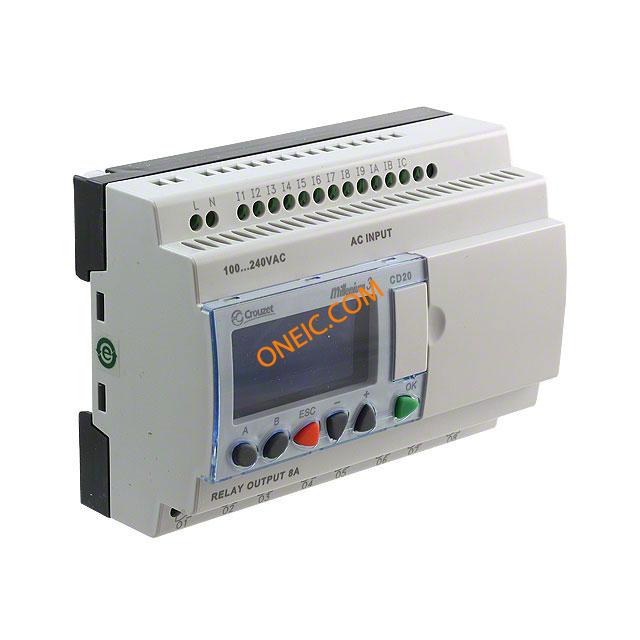

88974053
| Manufacturer | |
| Description | Controllers M3 CUSTOM CD20R 12 8 100 240VAC CONTROL LOG 20 I/O 100-240VAC MILLENIUM 3 SMART CD20 - 12I/8O R 230VAC LOGIC CONTROLLER; MILLENIUM 3C; 12/8 RELAY; 100-240VAC Modular Versions Designed For Application-Specific Functions PROGRAMMABLE LOGIC CONTROLLER, 12/8 RELAY, 240VAC LOGICCONTROLLER;MILLENIUM3C;12/8RELAY;100-240VAC Crouzet Millenium 3 逻辑控制, 12 x 输入, 8 x 输出, 240 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88974053-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA |
| Tariff No | 84733020 | Approval Agency | CE, CSA, UL |
Electrical
| Memory | EEPROM | Output | Relay |
| Indicator | Yes | Interface | Front Panel |
| Input Type | Digital | Memory Size | 368 bits/200 words |
| Output Type | 8 x SPST NO | Display Type | LCD Display |
| Response Time | 10ms Make, 5ms Release | Operating Mode | Program |
| Current - Output | 12 A | Number of Inputs | 12 |
| Voltage - Supply | 100 VAC to 240 VAC | Number of Outputs | 8 |
| Program Memory Size | 368 bits | Number of Outputs and Type | 8 - Relay |
Mechanical
| Size | 124.6 mm x 90 mm x 58 mm | Depth | 68mm |
| Width | 71.2mm | Height | 2.28" (58mm) |
| Length | 100mm | Weight | 0 |
| Termination | Screw | Mounting Type | DIN Rail |
| Mounting Style | Panel | Primary Material | Controller |
| Size / Dimension | 124.6mmL×90mmH×59.5mmD | Terminal Block Type | Screw |
Product Info
| Type | Compact Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Includes | Yes |
| Software | M3 | Expandable | No |
| Manufacturer | CD20Series | Programmable | Ladder Logic |
| Adapter Series | 889 Series | Control Method | Stored program control |
| Other Specifications | Yes - Lithium | Number of Inputs and Type | 12 - Digital |
| For Use With/Related Products | CD20 Series | ||
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 70°C | ||
