88970241
| Manufacturer | |

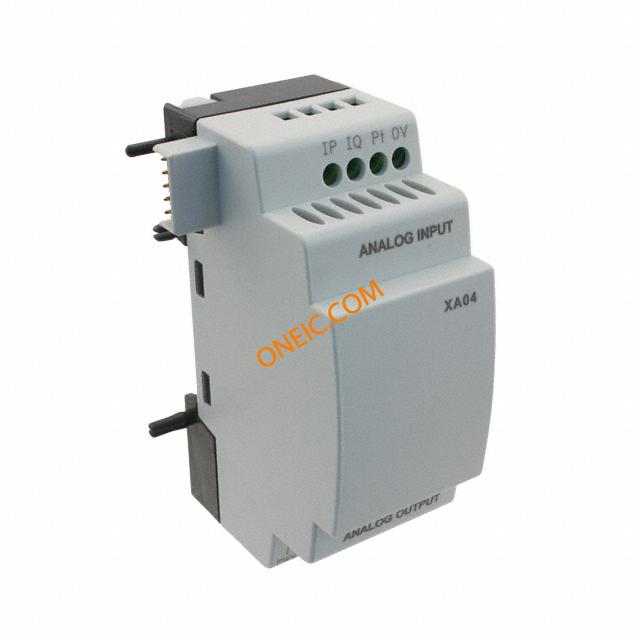

| Description | Controllers MILL 3 XA04 ANALOG EXP MOD MOD I/O 2 ANAL 2 ANAL/PWM 24V Digital Extensions With Power Supply Via The Controller I/OExtensionModule,24VDC,2Input,2AnalogOutputs In / out expansion module; 24VDC; Anal.in:2; Analog.outputs:2 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1124 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CSA, GL, UL |
Electrical
| Input Type | Analog | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Number of Inputs | 1 | Voltage - Supply | 24 VDC |
| Number of Outputs | 2 | Number of Outputs and Type | 2 - Analog/PWM |
Mechanical
| Size | 90 mm x 57.5 mm x 35.5 mm | Height | 2.26" (57.4mm) |
| Weight | 0.1 kg | Mounting Type | DIN Rail |
| Primary Material | Expansion | ||
Product Info
| Type | Extension Module | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Manufacturer | Millenium3 |
| Accessory Type | I/O Module | Control Method | Stored program control |
| Number of Units | 1 | Module/Board Type | in / out expansion module |
| Number of A/D Converters | 2 | Number of Inputs and Type | 2 - Analog |
| For Use With/Related Products | Millenium 3 | ||
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
