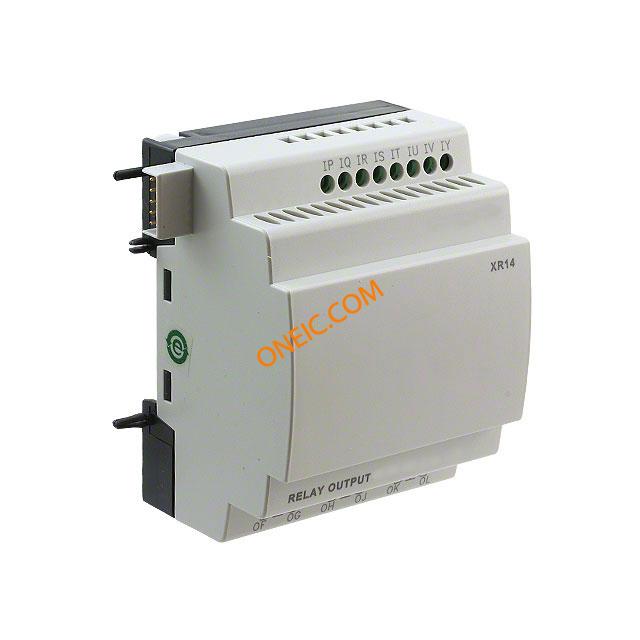

88970235
| Manufacturer | |
| Description | Controllers MILL 3 XR14 8 6 12VDC EXP MOD MOD I/O 8 DIG 6 RELAY 12VDC Crouzet PLC Expansion Module Input/Output 8 Input, 6 Output 12V dc 107.6 x 72 x 57.4mm Digital Extensions With Power Supply Via The Controller I/OExtensionModule,12VDC,8Input,6RelayOutput Crouzet 输入/输出模块 , 8输入, 6输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88970235-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, CSA, UL |
Electrical
| Input Type | Digital | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Voltage Rating | 12 Vdc | Number of Inputs | 8 |
| Voltage - Supply | 12 VDC | Number of Outputs | 6 |
| Number of Outputs and Type | 6 - Relay | ||
Mechanical
| Size | 90 mm x 72 mm x 57.5 mm | Depth | 57.4mm |
| Width | 72mm | Height | 2.26" (57.4mm) |
| Length | 107.6mm | Mounting Type | DIN Rail |
| Primary Material | Expansion | Size / Dimension | 107.6 x 72 x 57.4 mm |
Product Info
| Type | Extension Module | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | CAD Drawing | 3D CAD 模型 |
| Manufacturer | Millenium3 | Accessory Type | I/O Module |
| Control Method | Stored program control | Module/Board Type | Input / Output |
| Number of Inputs and Type | 8 - Digital | For Use With/Related Products | Millenium 3 |
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 70°C | ||
