88970233
| Manufacturer | |

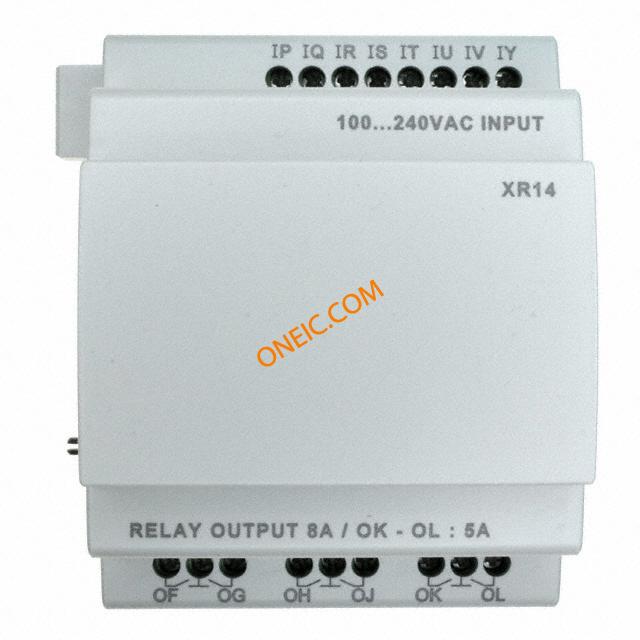

| Description | Controllers MILL 3 XR14 8 6 100 240VAC EXP MOD MOD I/O 8 DIG 6 RELAY 100-240V Digital Extensions With Power Supply Via The Controller I/OExtensionModule,XR14,100-240VAC,8Input,6RelayOutput |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1123 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, CSA, UL |
Electrical
| Input Type | Digital | Output Type | 6 x SPST NO |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Number of Inputs | 8 | Voltage - Supply | 100 VAC to 240 VAC |
| Number of Outputs | 6 | Number of Outputs and Type | 6 - Relay |
Mechanical
| Size | 90 mm x 72 mm x 57.5 mm | Height | 2.26" (57.4mm) |
| Mounting Type | DIN Rail | Primary Material | Expansion |
Product Info
| Type | Extension Module | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Manufacturer | Millenium3 |
| Accessory Type | I/O Module | Control Method | Stored program control |
| Number of Inputs and Type | 8 - Digital | For Use With/Related Products | Millenium 3 |
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 70°C | ||
