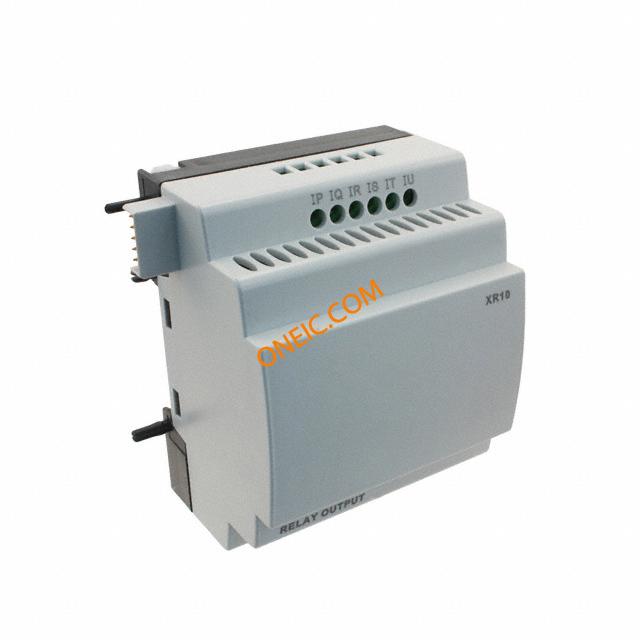

88970225
| Manufacturer | |
| Description | Controllers MILL 3 XR10 6 4 12VDC EXP MOD MOD I/O 6 DIG 4 RELAY 12VDC Crouzet PLC Expansion Module Input/Output 6 Input, 4 Output 12V dc 107.6 x 72 x 57.4mm I/OExtensionModule,XR10,12VDC,6Inputs,4RelayOutputs |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88970225-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, CSA, UL |
Electrical
| Input Type | Digital | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Voltage Rating | 12 Vdc | Number of Inputs | 6 |
| Voltage - Supply | 12 VDC | Number of Outputs | 4 |
| Number of Outputs and Type | 4 - Relay | ||
Mechanical
| Size | 90 mm x 72 mm x 57.5 mm | Depth | 57.4mm |
| Width | 72mm | Height | 2.26" (57.4mm) |
| Length | 107.6mm | Mounting Type | DIN Rail |
| Primary Material | Expansion | ||
Product Info
| Type | Extension Module | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Manufacturer | Millenium3 |
| Accessory Type | I/O Module | Control Method | Stored program control |
| Module/Board Type | Input / Output | Number of Inputs and Type | 6 - Digital |
| For Use With/Related Products | Millenium 3 | ||
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 70°C | ||
