88970161
| Manufacturer | |

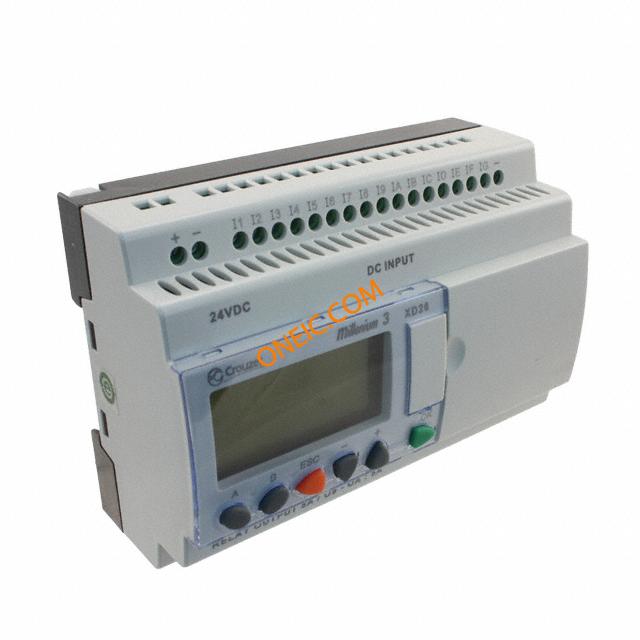

| Description | Controllers MILL 3 XD26 W/ DISPLY 16-10 24VDC CONTROL LOGIC 26 I/O 24VDC High-Performance Expandable Solution With Display Millenium3,XD26Controller,LDCDisplay,24VDC,16Inputs,10RelayOutputs MILL 3 XD26; 16-10 24VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1116 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA |
Electrical
| Memory | EEPROM | Output | Relay |
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | 10 x SPST NO |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Number of Inputs | 16 | Voltage - Supply | 24 VDC |
| Number of Outputs | 10 | Number of Outputs and Type | 10 - Relay |
Mechanical
| Size | 124.6 mm x 90 mm x 58 mm | Height | 2.34" (59.5mm) |
| Termination | Screw | Mounting Type | DIN Rail |
| Mounting Style | DINRail/Panel | Primary Material | Controller |
| Size / Dimension | 124.6mmL×90mmH×59.5mmD | Terminal Block Type | Screw |
Product Info
| Type | Expandable Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Software | M3 |
| Expandable | Yes | Manufacturer | XD26Series |
| Control Method | Stored program control | Electrical Life | Yes |
| Battery Type, Function | Yes - Lithium | Number of Inputs and Type | 16 - Digital (6 - Analog) |
Environmental
| Ingress Protection | IP20,IP40 | Operating Temperature | -20°C ~ 55°C |
