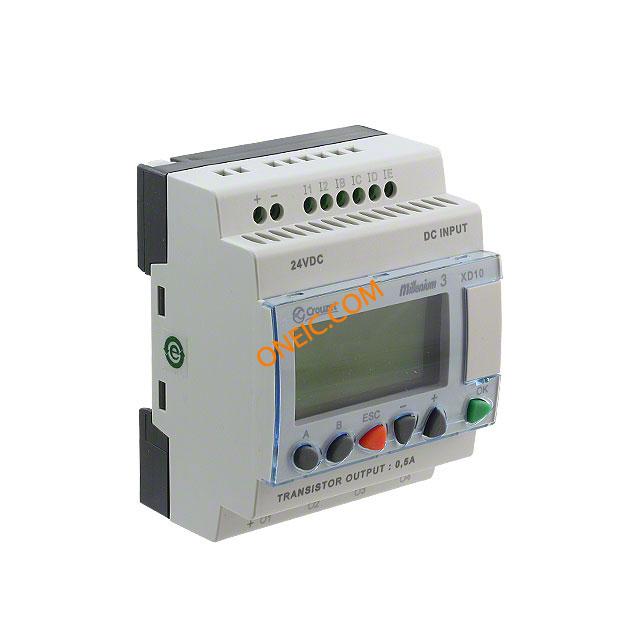

88970142
| Manufacturer | |
| Description | Controllers MILL 3 XD10 6 4 24VDC TRANS OUT CONTROL LOGIC 10 I/O 24VDC Crouzet Logic Module XD10, Serial, USB 2 Port 6 x Input, 4 x Output 24V dc Controller,Expandable,TransOut,withDisplay,XD10,24VDC,Millenium3 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88970142-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CSA, GL, UL |
Electrical
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Operating Mode | Run | Expansion Ratio | Yes |
| Current - Output | 0.5 A | Number of Inputs | 6 |
| Voltage - Supply | 24 VDC | Number of Outputs | 4 |
| Number of Outputs and Type | 4 - Solid State (1 - PWM) | ||
Mechanical
| Size | 90 mm x 71.2 mm x 58 mm | Height | 2.28" (58mm) |
| Contact Type | Serial, USB | Mounting Type | DIN Rail |
Product Info
| Type | Expandable Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Includes | Yes |
| Software | M3 | Expandable | Yes |
| Programmable | FBD, Ladder Logic, SFC | Adapter Series | XD10 |
| Control Method | Stored program control | Number of Ports | 2 |
| Other Specifications | Yes - Lithium | Number of Inputs and Type | 6 - Digital (4 - Analog) |
| For Use With/Related Products | XD10 Series | ||
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
