Business
| Other Names | 646-1106 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CSA, GL, UL |
Electrical
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | Relay |
| Display Type | LCD | Response Time | 10ms Make, 5ms Release |
| Number of Inputs | 16 | Voltage - Supply | 24 V |
| Number of Outputs | 10 | Analog Input:Output | 6 |
| Number of Outputs and Type | 10 - Relay | ||
Mechanical
| Size | 107.6 mm x 71.2 mm x 68 mm | Height | 2.28" (58mm) |
| Mounting Type | DIN Rail | ||
Product Info

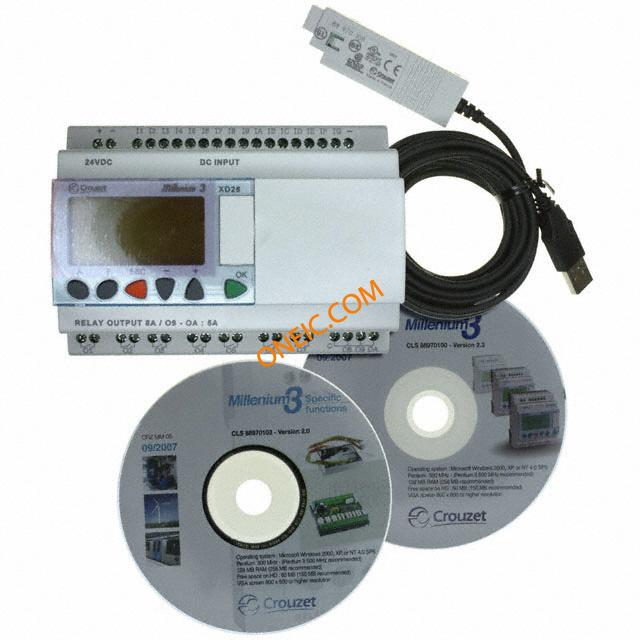

| Type | Starter Kit | Series | Millenium 3 |
| Features | Starter Kit: Module, USB Cable, CD-ROM | Software | M3 |
| Expandable | Yes | Card Standard | Controller Packages / Kits |
| Controller Type | XD26 | Other Specifications | Yes - Lithium |
| Number of Inputs and Type | 16 - Digital (6 - Analog) | ||
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- Declaration of Conformity
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
