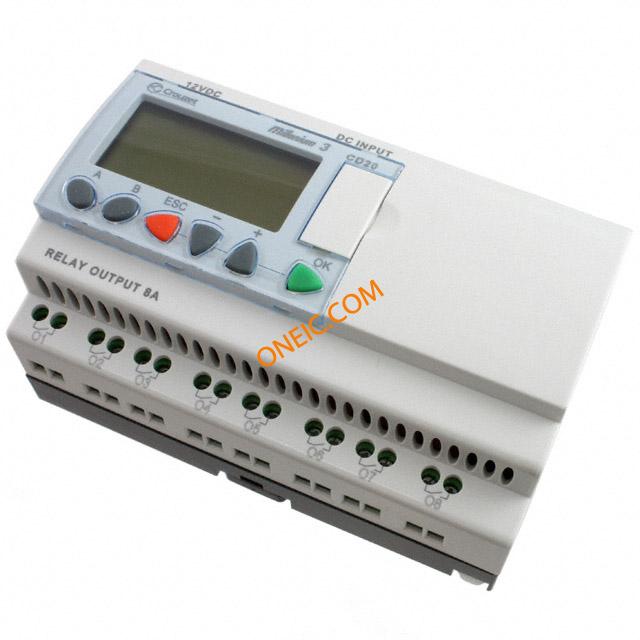

88970055
| Manufacturer | |
| Description | Controllers MILL 3 CD20 12 8 12VDC CONTROL LOGIC 20 I/O 12VDC Crouzet Logic Module CD20, Serial, USB 2 Port 12 x Input, 8 x Output 12V dc Compact Range With Display CD20 Millenium3,CD20Controller,LCDDisplay,12Input,8RelayOutput |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA |
| Approval Agency | CSA, GL, UL | ||
Electrical
| Memory | EEPROM | Output | Relay |
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Operating Mode | Run | Current - Output | 4 x 8 A |
| Number of Inputs | 12 | Voltage - Supply | 12 VDC |
| Number of Outputs | 8 | Number of Outputs and Type | 8 - Relay |
Mechanical
| Size | 124.6 mm x 90 mm x 58 mm | Height | 2.28" (58mm) |
| Termination | Screw | Contact Type | Serial, USB |
| Mounting Type | DIN Rail | Mounting Style | DINRail/Panel |
| Primary Material | Controller | Size / Dimension | 124.6mmL×90mmH×59.5mmD |
| Terminal Block Type | Screw | ||
Product Info
| Type | Compact Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Includes | Yes |
| Software | M3 | Expandable | No |
| Manufacturer | CD20Series | Programmable | FBD, Ladder Logic, SFC |
| Adapter Series | CD20 | Control Method | Stored program control |
| Number of Ports | 2 | Other Specifications | Yes - Lithium |
| Number of Inputs and Type | 12 - Digital (6 - Analog) | For Use With/Related Products | CD20 Series |
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
