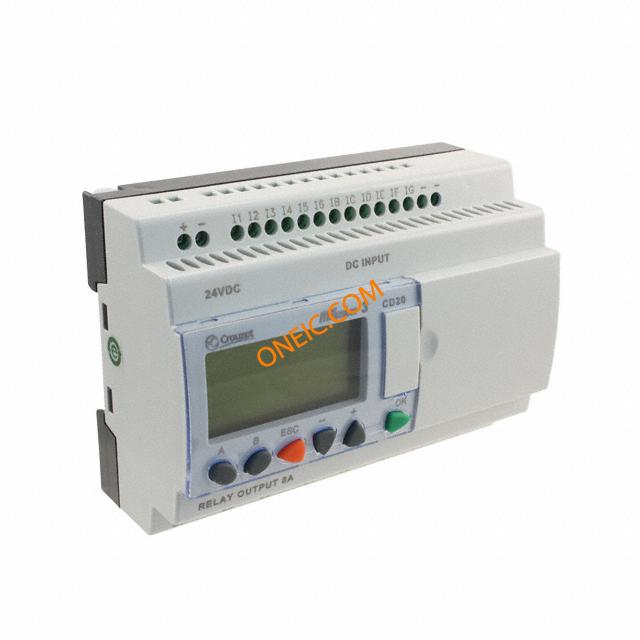

点击放大查看
88970051
| Manufacturer | |
| Description | Controllers MILL 3 CD20 12-8 24VDC CONTROL LOGIC 20 I/O 24VDC Millenium3,CD20Controller,LCDDisplay,24VDC,12Input,8RelayOutput Programmable relays; Inputs:12; Anal.in:8 MILL 3 CD20; 12-8 24VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1100 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA |
| Approval Agency | CSA, GL, UL | ||
Electrical
| Memory | EEPROM | Output | Relay |
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | 8 x SPST NO |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Number of Inputs | 12 | Voltage - Supply | 24 VDC |
| Number of Outputs | 8 | Number of Outputs and Type | 8 - Relay |
Mechanical
| Size | 107.6 mm x 71.2 mm x 58 mm | Height | 2.28" (58mm) |
| Weight | 0.36 kg | Termination | Screw |
| Mounting Type | DIN Rail | Mounting Style | DINRail/Panel |
| Primary Material | Controller | Size / Dimension | 124.6mmL×90mmH×59.5mmD |
| Terminal Block Type | Screw | ||
Product Info
| Type | Compact Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Software | M3 |
| Expandable | No | Manufacturer | CD20Series |
| Control Method | Stored program control | Electrical Life | Yes |
| Number of Units | 1 | Module/Board Type | programmable relays |
| Other Specifications | Yes - Lithium | Battery Type, Function | Yes - Lithium |
| Number of A/D Converters | 8 | Number of Inputs and Type | 12 - Digital (6 - Analog) |
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
