88950307
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Other Names | 646-1090 |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | 24VDC@1.2A | Operation | Switching |
| Output Type | DC | Output Power | 30 W |
| Power - Output | 30W | Voltage Rating | 100 VAC to 240 VAC |
| Current - Output | 1.2 A | Voltage - Supply | 100 → 240 V |
| Number of Outputs | 1 | Current Rating (Max) | 1.2 A |
| Voltage - Input (Min) | 24 VDC | Voltage - Output (Max) | 22.8 → 28.8V 直流 |
| Current - Output / Channel | 1.2 A | ||

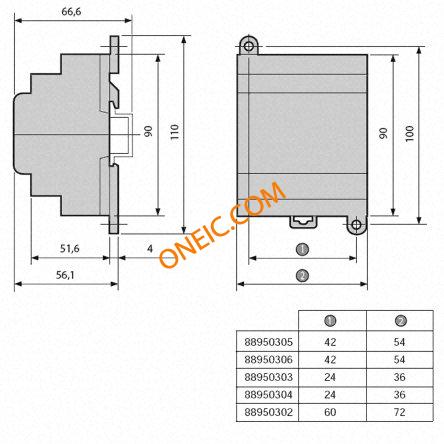

Mechanical
| Depth | 56.1mm | Width | 54mm |
| Length | 54mm | Mounting Style | DIN Rail |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 110 mm L x 36 mm W | ||
Product Info
| Type | LEDDriver | Series | Millenium 3 |
| Features | DoubleInsulation | Application | Commercial |
| Manufacturer | Millenium3 | Configuration | Enclosed |
| Adapter Series | PS | For Use With/Related Products | Millenium III Series |
Environmental
| Operating Temperature | +55°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- Declaration of Conformity
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
