88950302
| Manufacturer | |

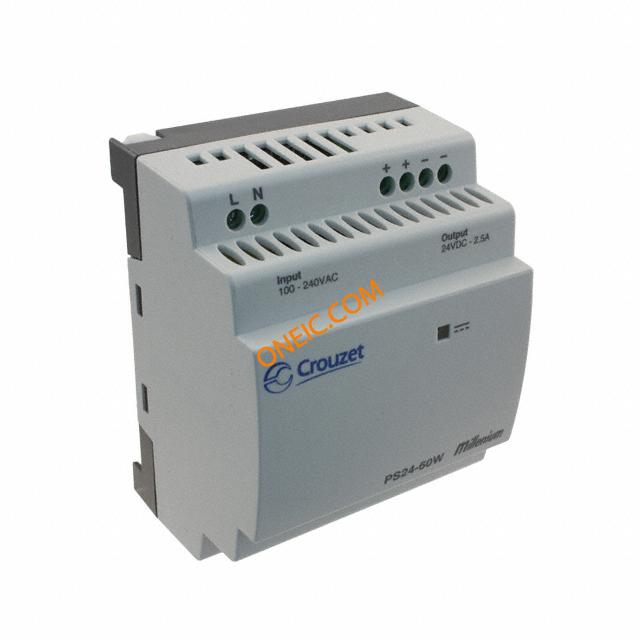

| Description | DIN Rail Power Supplies MIL PWR SPLY 24V DC 60W 100 240VAC POWER SUPP 24VDC 60W 100-240VAC Crouzet PLC Power Supply PS Series, 100 to 240V ac, 24V dc 2.5A 60W 110 x 72 x 56.1mm AC/DC Power Supply Single-OUT 24V 2.5A 60W AC-DC CONV, OPEN FRAME, 1 O/P, 60W, 2.5A, 24V POWERSUPPLY;100-240VAC;24VDC;60W;2.5A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Other Names | 646-1085 |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85044090 |
Electrical
| Output | 24VDC@2.5A | Operation | Switching |
| Output Type | DC | Power - Max | :60W |
| Output Power | 60 W | Power - Output | 60W |
| Voltage Rating | 100 VAC to 240 VAC | Current - Output | 2.5 A |
| Voltage - Supply | 100 → 240 Vac | Number of Outputs | 1 |
| Voltage - Input (Min) | 24 VDC | Current - Output / Channel | 2.5 A |

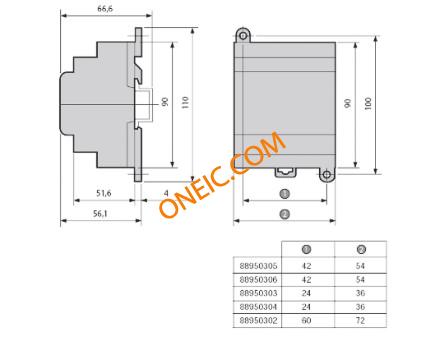

Mechanical
| Depth | 56.1mm | Width | 72mm |
| Length | 110mm | Weight | 0 |
| Mounting Style | DIN Rail | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 110 mm L x 36 mm W |
Product Info
| Type | LEDDriver | Series | Millenium 3 |
| Features | DoubleInsulation | Application | Commercial |
| Manufacturer | Millenium3 | Configuration | Enclosed |
| Adapter Series | PS | For Use With/Related Products | PS Series |
Environmental
| Operating Temperature | +55°C | ||
