88886016
| Manufacturer | |
| Description | Timers TMR48U 2 RELAY 11 PIN RELAY TIME ANALOG 5A 250V 11PIN TMR 48 Analog Timers With Multi-Range From 0.02 S To 300 H ELECTROMECHANICAL GENERAL PURPOSE TIMER Timer; Multi-Function; 0.02s-300h; E-Mech; DPDT; 5A; Ctrl-V240AC/DC; Pnl-Mnt; 11PinOctal Timer; 0,02s÷300h; DPDT; 250VAC/5A; 24÷240VAC; 12÷240VDC; PIN:11 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog Timer | Other Names | 646-1170 |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 84229010 |
Electrical
| Circuit | DPDT (2 Form C) | Accuracy | +/- 0.5 % |
| Delay Time | 0.02 Sec ~ 300 Hrs | Reset Time | :60ms |
| Timer Type | Multi-Function | Output Type | Mechanical Relay |
| Range deg/s | 0.02 s to 300 h | Display Type | Dial |
| Sensing Range | 0,02s...300h | Voltage Rating | 250 VAC |
| Voltage - Supply | 12 VDC to 240 VDC, 24 VAC to 240 VAC | Power - Peak Pulse | 2000 VA |
| Current Rating (Max) | 5 A | Voltage - Input (Min) | 250VAC/5A |
| Timing Initiate Method | Input Voltage, Trigger Signal | Power - Average Forward | :4.8VA |
| Contact Rating @ Voltage | 5A @ 250VAC | Voltage - Supply (Vcc/Vdd) | 240 VAC/VDC |
Mechanical
| Width | :45mm | Weight | 0.122 |
| Termination | Plug-In | Contact Form | SPDT |
| Mounting Type | Socket | Number of Pins | 11 |
| Termination Style | Plug in | Number of Positions | 11 |
| Panel Cutout Dimensions | :45mm | ||
Product Info
| Type | Multifunction Timer | Series | TMR48 |
| Function | Programmable (Multi-Function) | Relay Type | Integrated |
| Manufacturer | TMR48 Series | Number of Units | 1 |
| Module/Board Type | timer | Timing Adjustment Method | Hand Dial |
Environmental
| Operating Range | :0.005sec to 300hr | Operating Temperature | - 20 C to + 55 C |
| Operating Temperature - Junction | 55 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

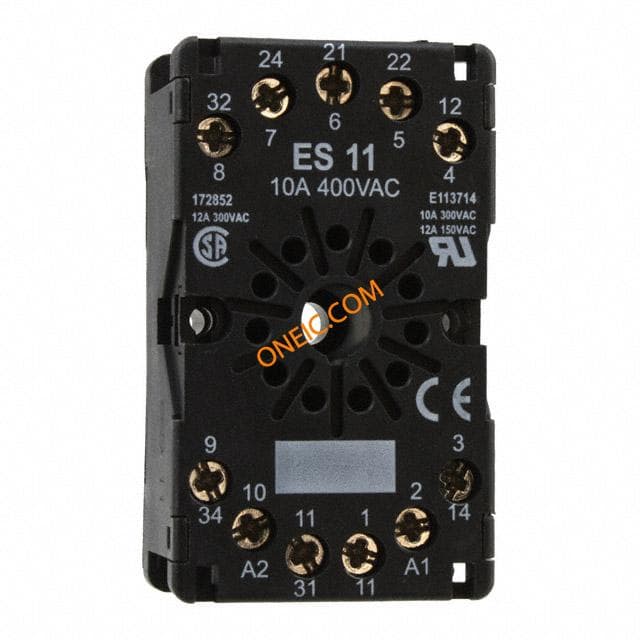

25622080
Crouzet
Controllers 11 PIN SKT FOR USE W TMR48 SOCKET DIN RAIL RELAY 11PIN OCT Crouzet 25622080 Connector 812 Series, 814 Series, 815 Series, 815E Series Pin base, 11-pin, 25622080, Crouzet Crouzet 连接器, 使用于812 系列、814 系列、815 系列、815E 系列
$74.8680
Details

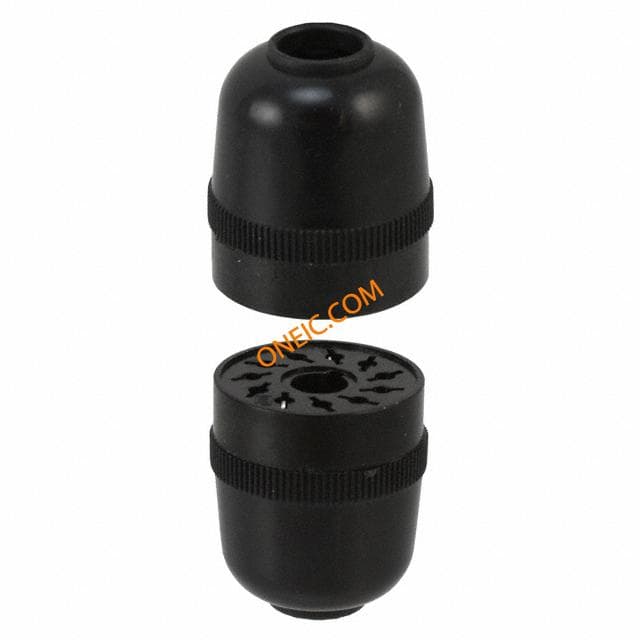

25622076
Crouzet
Controllers B13 11 PIN FREE SKT CONTROL TIMER ACCESS SOCKET 11P SOLDER-CONNECTED PLUG, 11-PIN FOR 816 DIGITAL TIMERS
$57.1880
Details

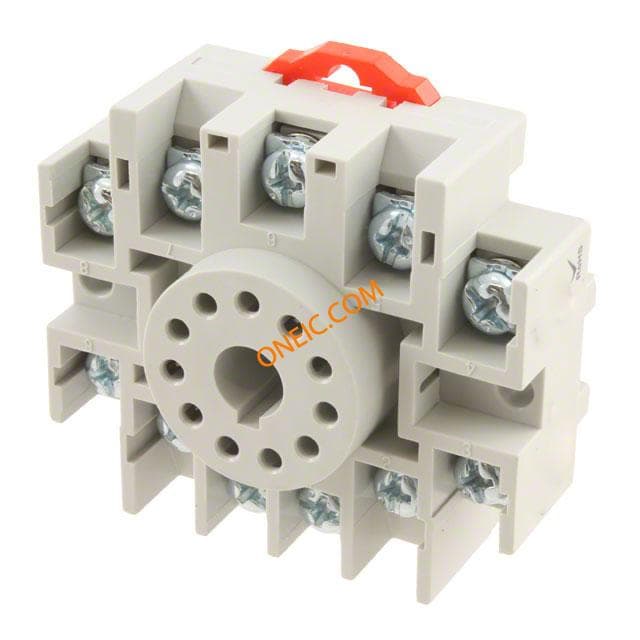

S11
Crouzet
Controllers SCRW SKT RELAY SOCKET 11 OCTAL DIN MOUNT Conn Relay Socket SKT 11 POS Screw ST Socket, Relay; 11; DIN Rail; S11 Series
$53.4480
Details

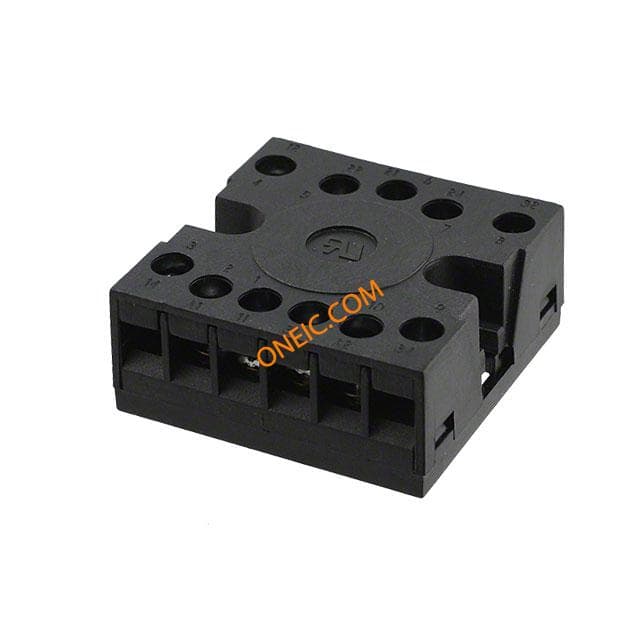

SA11NN
