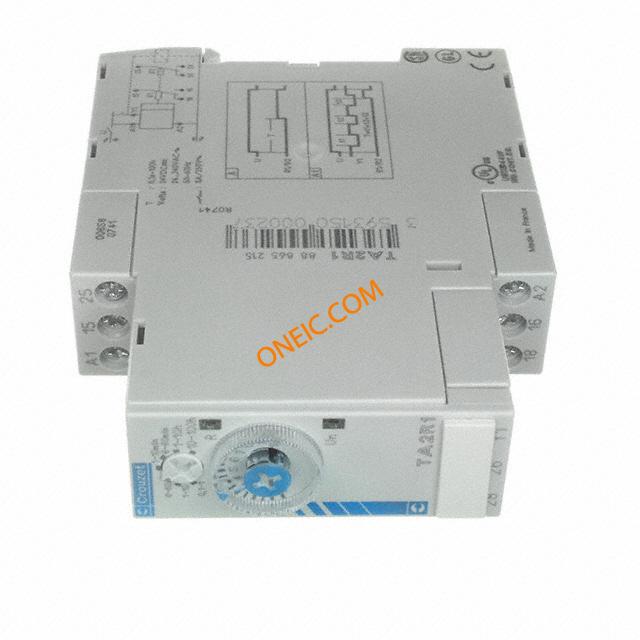

88865215
| Manufacturer | |
| Description | Timers TA2R1 FUNC-A-AT 2 SPDT RELAY TIME ANALOG 8A 24-240V DIN Din Rail Mounting TA2R1 With LED Status Indicator Relay; E-Mech; Timing; On Delay; DPDT; Cur-Rtg 10A; Ctrl-V 24-240/24AC/DC; Vol-Rtg 250V Timer; DPDT; 250VAC/5A; 24÷240VAC; 24VDC; DIN CROUZET TIMER |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1182 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | DPDT (2 Form C) | Accuracy | +/- 0.5 % |
| Delay Time | 0.1 Sec ~ 100 Hrs | Output Type | Mechanical Relay |
| Range deg/s | 0.1 s to 100 h | Display Type | LED Indicator |
| Voltage - Supply | 24 VDC, 24 VAC to 240 VAC | Voltage - Input (Min) | 250VAC/5A |
| Timing Initiate Method | Input Voltage, Trigger Signal | Contact Rating @ Voltage | 8A @ 250VAC |
Mechanical
| Weight | 1 g | Mounting Type | DIN Rail |
| Termination Style | Screw | ||
Product Info
| Type | Multifunction Timer | Series | Chronos 2 |
| Function | On-Delay | Relay Type | Integrated |
| Circuit Type | DPDT (2 Form C) | Electrical Life | screw terminals |
| Number of Units | 1 | Module/Board Type | timer |
| Timing Adjustment Method | Hand Dial | ||
Environmental
| Operating Temperature | - 20 C to + 60 C | ||
