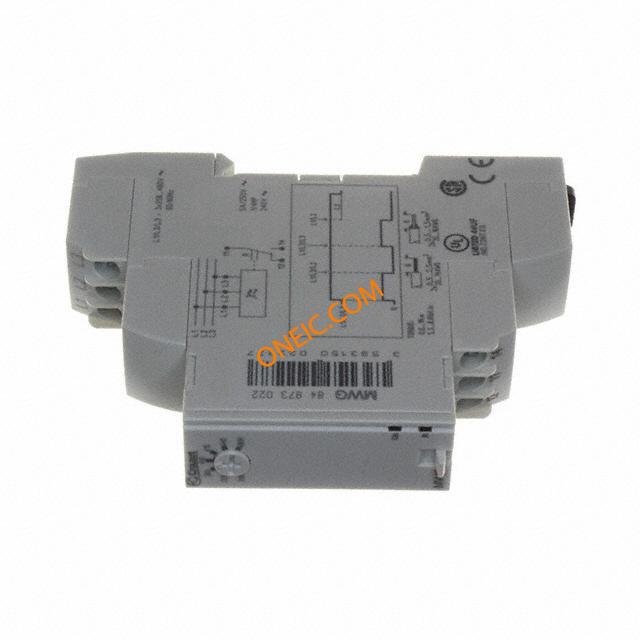

84873022
| Manufacturer | |
| Description | Controllers MWG 208 480 3PHASE SEQ AND LOSS RELAY MONITOR 3PHASE 208-480V MWG Phase Control relay RELAYS MWG 3x208-3x480 V AC Relay; E-Mech; Control; Cur-Rtg 5AAC/ADC; Ctrl-V 208-480AC; Vol-Rtg 250AC/DC; RoHS Voltage monitoring relay; Mounting: DIN; OUT1 type: SPDT; 0.5s Crouzet 3相 相位 监控继电器 , 带单刀双掷 触点, 208 → 480 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1134 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Delay Time | 0.1 → 10 s | Input Type | Analog |
| Output Type | Relay | Display Type | LED Display |
| Number of Inputs | 3 | Phase Difference | 3 |
| Voltage - Supply | 208 VAC to 480 VAC | Number of Outputs | 1 |
| Voltage - Input (Min) | 250VAC/5A | Frequency (Center/Band) | three-phase systems, phase sequence, phase loss |
| Phase Noise Typ (dBc/Hz) | 3 | ||
Mechanical
| Size | 90 mm x 60 mm x 17.5 mm | Width | 17.5mm |
| Height | 92.6mm | Length | 69mm |
| Weight | 1 g | Lead Style | screw terminals |
| Size - Body | 92.6 x 17.5 x 65.5mm | Mounting Type | DIN Rail |
| Size / Dimension | see | Contact Termination | 0.5s |
| Contact Layout, Typical | SP-NO/NC | ||
Product Info
| Type | Multifunction Phase Control | Series | MWG |
| Features | Multi-voltage Products | Software | 相位 |
| Schematic | see | Control Method | Stored program control |
| Number of Units | 1 | Module/Board Type | voltage monitoring relay |
| Other Specifications | 断相，相序 | Application Specifics | Phase |
Environmental
| Operating Temperature | -20...50°C | ||
