84871023
| Manufacturer | |

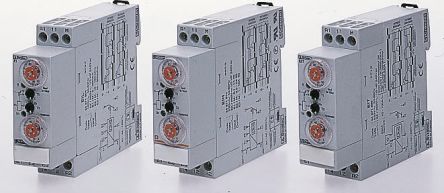

| Description | Controllers EIL CNTRL 200 TO 500 MA 120VAC RELAY MONITOR CURRNT 2-500MA ADJ EIL current control relay,2-500mA 110Vac Electromechanical Relay SPDT 8A 120VAC DIN Rail/Surface Mount Relay; E-Mech; Control; SPDT; Cur-Rtg 8A; Ctrl-V 120AC; DIN Rail Mnt; EIL Series Crouzet 1相 电流 监控继电器 , 带单刀双掷 触点, 120 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1148 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL, cUL, CE |
Electrical
| Delay Time | 0.1 → 3 s | Input Type | Analog |
| Output Type | SPDT | Sensitivity | Overcurrent, Undercurrent |
| Display Type | None | Number of Inputs | 1 |
| Phase Difference | 1 | Voltage - Supply | 120 VAC |
| Current - Sensing | 2mA | Number of Outputs | 1 |
| Current Rating (Max) | 500mA | Phase Noise Typ (dBc/Hz) | 1 |
| Voltage - Supply (Vcc/Vdd) | 120 VAC | ||
Mechanical
| Size | 100 mm x 78.5 mm x 22.5 mm | Width | 22.5mm |
| Height | 99.3mm | Length | 103.5mm |
| Weight | 140 g | Contact Form | SPDT |
| Mounting Type | DIN Rail | Size / Dimension | 103.5 x 22.5 x 99.3 mm |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | Single Function Current Control | Series | EI |
| Features | UL cUL listed | Function | General Purpose |
| Software | 电流 | Relay Type | Electro Mechanical |
| Manufacturer | EIL Series | Card Standard | Current Monitor Relay |
| Control Method | Stored program control | Application Specifics | Current |
Environmental
| Operating Temperature | -20 to 60 °C | ||
