84870720
| Manufacturer | |

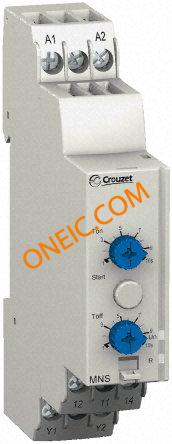

| Description | Controllers MNS FILLING COND LLC 24 240VAC DC CONTROL LIQ LEV 24-240VAC/DC Crouzet DIN Rail Mount 24 to 240V ac/dc Level Controller, 24 to 240V ac/dc, 69 x 17.5 x 90mm Electromechanical Relay SPDT 5A 24V to 240VDC 24V to 240VAC DIN Rail Liquid Level Control, 24-240VAC/DC, Din-Rail Crouzet 电平控制 监控继电器 , 带单刀双掷 触点, 24 → 240 V 交流/直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Standards | UL, CSA, CE |
Electrical
| Voltage | 24 → 240V ac/dc | Delay Time | 1 → 10 s |
| Input Type | Analog | Output Type | SPDT |
| Display Type | LED Display | Number of Inputs | 1 |
| Voltage - Supply | 24 V to 240 V | Number of Outputs | 1 |
| Power - Peak Pulse | 2 W | Contact Rating @ Voltage | 5A @ 250VAC |
Mechanical
| Size | 90 mm x 60 mm x 17.5 mm | Width | 17.5mm |
| Height | 92.6mm | Length | 69mm |
| Termination | Terminal Block | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Depth - Overall | 90mm |
| Width - Overall | 17.5mm | Length - Overall | 69mm |
| Primary Material | Controller | Size / Dimension | 17.55mmL×90mmH×60mmD |
| Termination Style | Screw Terminal | Contact Layout, Typical | 单刀双掷 |
Product Info
| Type | Level Control | Series | MNS |
| Features | Discrete sensor | Software | 电平控制 |
| Applications | Drain Control, Supply Control | Manufacturer | MNS Series |
| Control Method | ON/OFF | Output Configuration | SPDT |
Environmental
| Seal Rating | IP20, IP30 | Operating Temperature | -20°C ~ 50°C |
