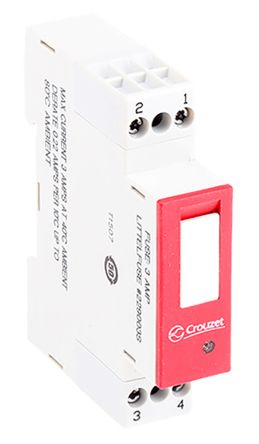

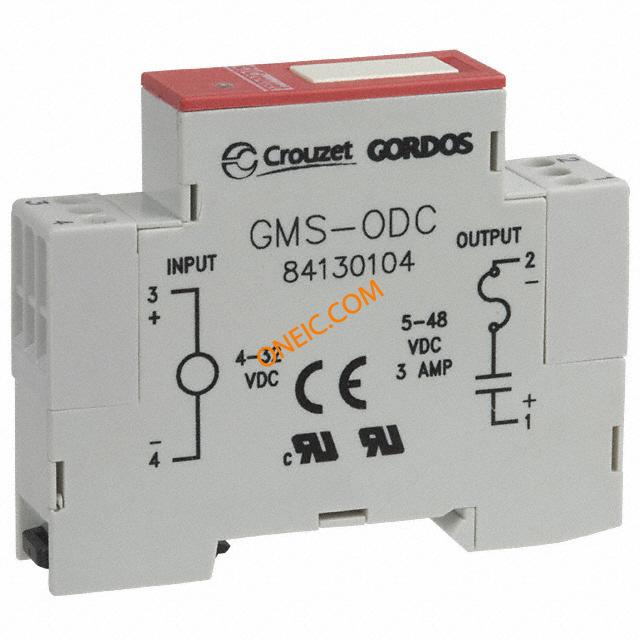

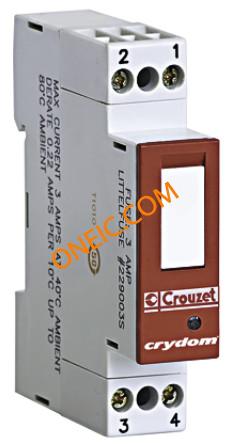

84130104
| Manufacturer | |
| Description | I/O Modules 5-48 V DC OUTPUT OUTPUT MODULE DC 22MA 4-32VDC RELAY GMS 4/32VDC-3A I/O Module Relays Output Module 32VDC 22mA 4000Vrms DIN Rail MODULE; 5 TO 60 VDC; SOLID STATE; 3 A; 5 A; DIN RAIL; -30 DEGC; 80 DEGC; 10 MU Relay: solid state; Ucntrl:4÷32VDC; 3A; 5÷48VDC; Variant:1-phase 接口继电器模块, 32V dc, 3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1067 | Product Category | I/O Modules |
| Standard Package | 10 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Turn On Time | 0.05ms | Voltage Rating | 4 VDC to 32 VDC |
| Current - Output | 16 mA | Delay Time - OFF | 0.05ms |
| Voltage - Supply | 4...32V DC | Switching Voltage | 5...48V DC |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 5 ~ 60VDC |
| Current - Input Bias (Max) | 22mA | Voltage - Supply (Vcc/Vdd) | 32 VDC |
Mechanical
| Color | Red | Weight | 0.07 kg |
| Size - Body | 81 x 17.5 x 65mm | Termination | Terminal Block |
| Contact Form | SPST-NO | Mounting Type | DIN Rail |
| Number of Pins | 4 | Size / Dimension | see |
| Termination Style | SMD/SMT | ||
Product Info
| Type | DC | Style | DIN Rail Mount |
| Features | Status LED(s) | Function | DC Switching |
| Relay Type | Solid State | Relay Variant | 1-phase |
| Number of Units | 1 | Output Configuration | see |
Environmental
| Operate Time | 50µs | Operating Temperature | -30...80°C |
