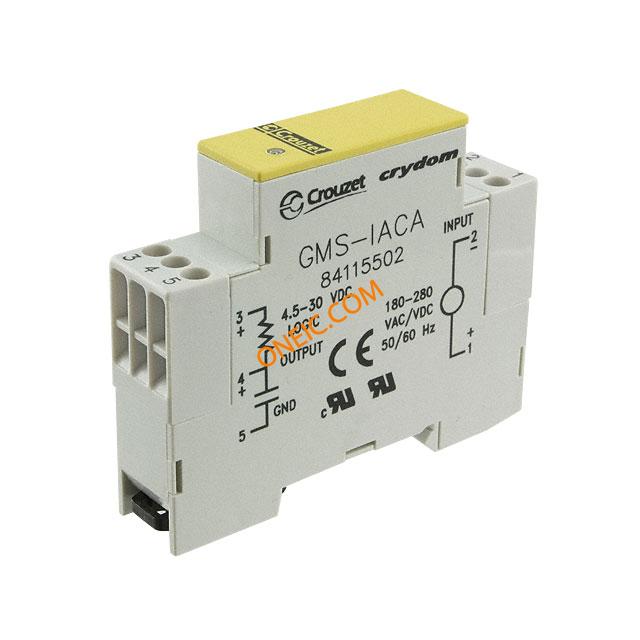

84115502
| Manufacturer | |
| Description | I/O Modules 17.5mm In Module 180-280Vac In INPUT MODULE AC 5MA 4.5-30VDC I/O Module Relays Input Module 280VDC/280VAC 2mA 4000Vrms DIN Rail Module; Input; 140 TO 280 VAC; 240 VAC; 5 MA (MAX.); 4.5 TO 30 VDC; 20 MS; 2 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | I/O Modules | Standard Package | 10 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Standards | UL Listed, cUL Recognized, CE Certified |
Electrical
| Input | 140 to 280 VAC/VDC | Input Type | Digital |
| Input Range | 140 to 280 VAC/VDC | Turn On Time | 20ms |
| Voltage Rating | 240 VAC | Current - Output | 5 mA |
| Delay Time - OFF | 20ms | Voltage - Supply | 30 VDC |
| Number of Channels | 1 | Current - Input Bias | 50 mA |
| Voltage - Input (Min) | 180 ~ 280VAC (240VAC Nom) | Voltage - Supply, Digital | 4.5 ~ 30VDC |
| Current - Input Bias (Max) | 5mA | Turn On / Turn Off Time (Typ) | 30 (Max.) ms |
Mechanical
| Color | Yellow | Mounting Type | DIN Rail |
| Primary Material | Control | Size / Dimension | 81 L x 17.5 W mm |
| Termination Style | SMD/SMT | ||
Product Info
| Type | AC | Style | DIN Rail Mount |
| Features | Status LED(s) | Manufacturer | 17.5 Series |
| Connection Type | Board Mount | Module/Board Type | Input |
