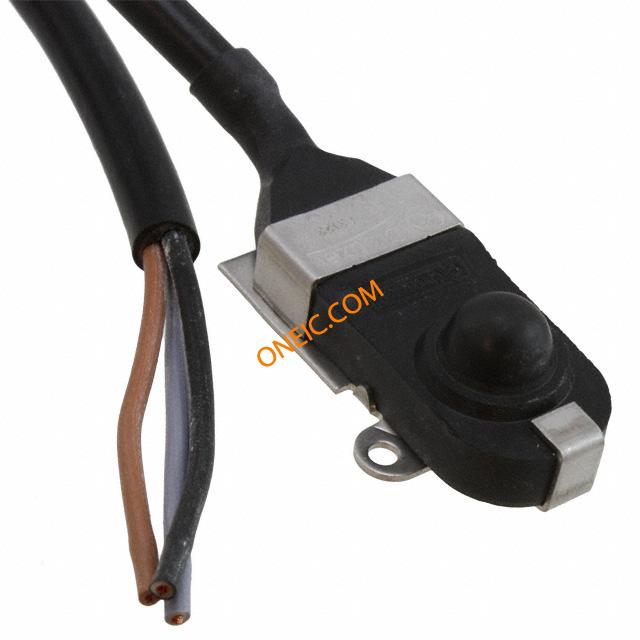

83123018.RB
| Manufacturer | |
| Description | Basic / Snap Action Switches SLDSW 5A 0.5M RSDPB SLDSW 5A 0.5M RSDPB Switch; Sealed Flat Pack Switch, Sealed Flat Pack |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Circuit | SPDT | Operation | Snap Action |
| Voltage Rating | 250V | Number of Poles | 1 |
| Switch Function | On-Mom | Differential Travel | 0.008" (0.2mm) |
| Current Rating (Max) | 5A (AC) | ||
Mechanical
| Packaging | Bulk | Overtravel | 0.008" (0.2mm) |
| Termination | Lead Wires | Contact Form | SPDT |
| Actuator Type | Round (Pin Plunger) | Mounting Type | Chassis Mount |
| Release Force | 153gf | Operating Force | 540gf |
| Termination Style | Cable Leads | Number of Positions | 2 |
| Mounting Hole Diameter | 0.125 " | ||
Product Info
| Type | Limit | Features | Cable Length 0.5m |
| Operating Position | 0.685" (17.4mm) | ||
Environmental
| Seal Rating | IP66 | Mechanical Life | 2,000,000 Cycles |
| Ingress Protection | IP66 - Dust Tight, Water Resistant | Operating Temperature | 0°C ~ 85°C |
Documents & Media
PDF Document
