82861010
| Manufacturer | |

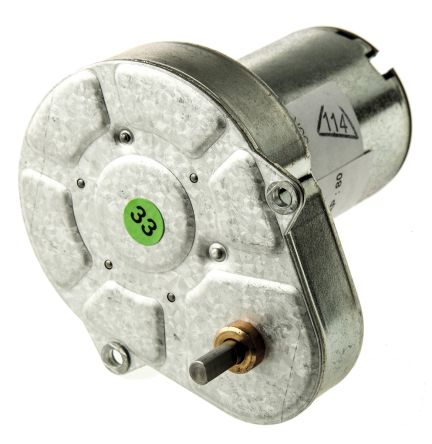

| Description | MOTOR BRUSHED DC GEAR 3.9W 12V Brushed DC Motors Gear Motor Cylindrical Body 12V 3.9W 54RPM 0.5N.m 1Shaft MOTOR, GEARED, 12VDC, 54RPM Crouzet 直流齿轮传动电动机 , 电刷型, 12 V 直流, 0.5 Nm, 54 rpm, 3 W |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| Tariff No | 85011099 | ||
Electrical
| Speed | :54rpm | Speed - Read | :54rpm |
| Power (Watts) | 3.9W | Power - Rated | :3W |
| Voltage Rating | 12VDC | ||
Mechanical
| RPM | 54 RPM | Weight | 0.353 lb (160.12g) |
| Height (Max) | :61.3mm | Diameter - Shaft | 0.157" (4.00mm) |
| Termination Style | Solder Tab | Diameter - Outside | :32.2mm |
| Number of Positions | :(Not Available) | Gear Reduction Ratio | 80 |
| Mounting Hole Spacing | 1.87" (47.60mm) | Torque - Rated (oz-in / mNm) | 70.8 / 500 |
| Torque - Holding (oz-in / mNm) | 4.25 / 30 | Diameter - Outside, Non-Expanded | 1.27" (32.20mm) |
| Torque - Max Momentary (oz-in / mNm) | :0.5N-m | ||
Product Info
| Type | Brushed DC | Features | Gearbox |
