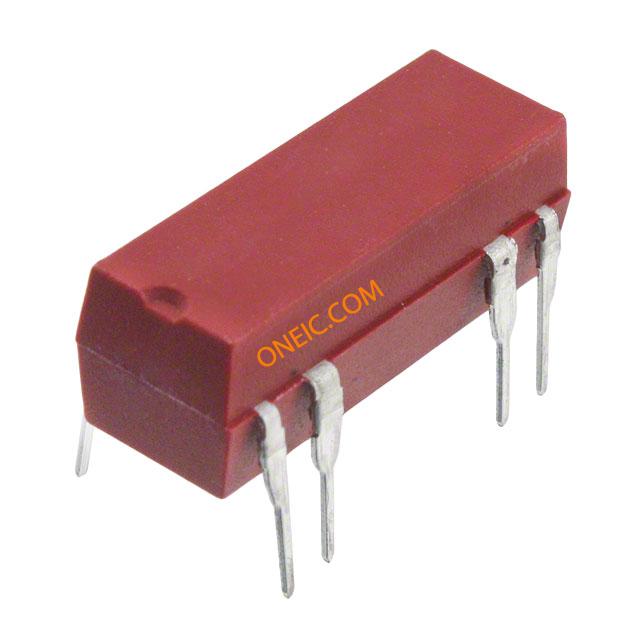

8001-05-011
| Manufacturer | |
| Description | Reed Relays DIP-14 Reed Relay RELAY REED SPST 500MA 5V Reed Relays SPST-NO 0.5A 5VDC 500Ohm Thru-Hole Reed Relays Coil Voltage: 5 VDC Contact Configuration : 1A SPST-NO Mounting : PC Board Switching Current : 0.5 Amps Switching Voltage: 200 Volts |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Reed Relays | Standard Package | 1 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Coil Type | Non Latching | Coil Current | 10mA |
| Release Time | 1ms | Coil Resistance | 500 Ohms |
| Voltage - Supply | 5VDC | Switching Voltage | 200VAC, 200VDC - Max |
| Vgs(th) (Max) @ Id | 0.5 VDC | Current - Switching | 0.5 Amps |
| Diode Configuration | Yes | Voltage - Off State | 0.5 VDC |
| Vce(on) (Max) @ Vge, Ic | 3.8 VDC | Contact Rating (Current) | 500mA |
| Contact Rating @ Voltage | 0.5A @ 200 VAC/DC | Drive Voltage (Max Rds On, Min Rds On) | 3.8 VDC |
Mechanical
| Packaging | Tube | Contact Form | 1 Form A (SPST-NO) |
| Mounting Type | Through Hole | Contact Material | Ruthenium |
| Termination Style | PC Pin | Contact Layout, Typical | 1A SPST-NO |
Product Info
| Form | DIP | Type | Relays |
| Series | 8000 | Features | Diode |
| Relay Type | Reed | Card Standard | Reed Relay |
Environmental
| Operate Time | 0.5ms | Operating Temperature | -20°C ~ 85°C |
