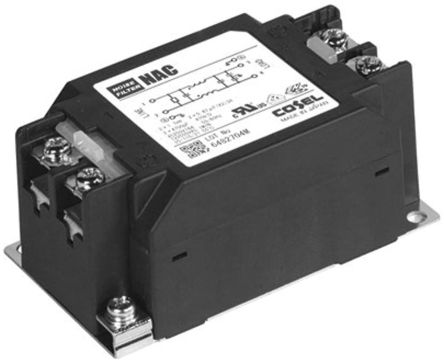

NAC-10-472
| Manufacturer | |
| Description | Noise Filter; 10A; 3.7 mH; 0.47 uf; 4700 pf; 2.09 x 1.62 x 3.63; RoHS Compliant NoiseFilter,10A,3.7mH,0.47uf,4700pf,2.09x1.62x3.63,RoHSCompliant Cosel NAC 系列 10A 250 V 交流/直流, 150 kHz 至 1 MHz 面板安装 RFI 滤波器 , 带螺丝接端 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | Power Line Filter |
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 150 kHz → 1 MHz | Filter Type | Noise |
| Voltage Rating | 250VAC | Voltage - Rated | 250 V 交流/直流 |
| Current - Leakage | 0.5mA | Current Rating (Max) | 10A |
| Frequency - Operating | 60Hz | Phase Noise Typ (dBc/Hz) | 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 250VAC | ||
Mechanical
| Depth | 53mm | Height | 43mm |
| Length | 92mm | Mounting Type | 面板安装 |
| Mounting Style | DINRail | Terminal Style | 螺丝 |
| Primary Material | AC | Size / Dimension | 92mmH×41mmW×53mmL |
| Number of Positions | 1 | ||
Product Info
| Type | Filter | Series | NAC |
| Function | Y | Manufacturer | NACSeries |
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
PDF Document
