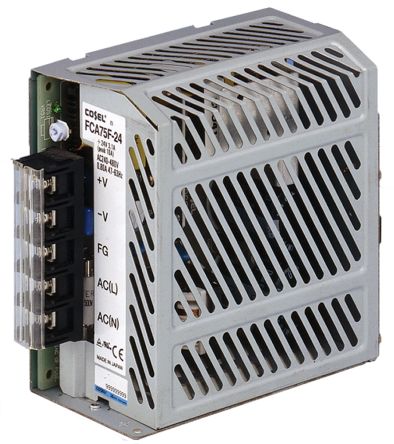

FCA75F-24
| Manufacturer | |
| Description | Power Supply; 187 to 528 VAC (1-Phase); 24 V; 3.1; 75 W (Max.) Output PowerSupply;187to528VAC(1-Phase);24V;3.1;75W(Max.)Output Cosel 75W 单输出 嵌入式开关模式电源 SMPS , 187 → 528V ac输入, 24V dc输出, 3.1A输出, 82%效能, 封闭封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | AC to DC Power Supply |
Compliance
| RoHS | Compliant | Standards | cULusListed,CEApproved |
Electrical
| Noise | 720mV 峰峰值 | Output | 24VDC@3.1A |
| Frequency | 47to63Hz | Operation | Linear |
| Power (Watts) | 82% | Power - Rated | 75W(Max.)Output |
| Power - Output | 75W | Voltage Rating | 187 → 528V 交流 |
| Current - Output | 3.1 | Voltage - Supply | 24 V 直流 |
| Number of Outputs | 1 | Current Rating (Max) | 3.1A |
| Voltage - Input (Min) | 187-528VAC | Voltage Regulation - Load | 150mV |
Mechanical
| Depth | 50mm | Width | 125mm |
| Length | 132mm | Weight | 750g |
| Mounting Style | Panel | Package Quantity | 封闭 |
| Primary Material | AC-DC | ||
Product Info
| Type | Industrial | Features | PFC |
| Function | Y | Manufacturer | FCASeries |
| Configuration | Enclosed | ||
Environmental
| Operating Temperature | -10to+70°C | Maximum Temperature Limit | +70°C |
Documents & Media
PDF Document
