SK221M010ST
| Manufacturer | |
| Description | Aluminum Electrolytic Capacitors - Leaded 220uF 10V Cap Aluminum 220uF 10V 20% (6.3 X 11mm) Radial 2.5mm 1.15 Ohm 250mA 2000h 85°C CAP ALUM 220UF 10V 20% RADIAL Capacitor; Al Electrolytic;220uF;10VDC;+/-20%;Radial;6.3mmDia.;11mmL;13VDC;250m Capacitor;AlElectrolytic;220uF;20%;10VDC;Radial;ESR1.15Ohms;6.3x11mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | General Purpose Electrolytic Capacitors | Lead Time | 105 Days |
| Subcategory | Capacitor Aluminum | Product Category | Aluminum Electrolytic Capacitors - Leaded |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| ESR | 1.15Ohmsat120Hz,25°C | Voltage | 10VDC |
| Tolerance | 20 % | Capacitance | 220 uF |
| Voltage Rating | 10 V | Current - Leakage | 4.7uA(Max)after2minutes |
| Dissipation Factor (DF) | 20 | Power Dissipation (Max) | 19%at120Hz,25°C |
| Ripple Current @ High Frequency | 250 mA | ESR (Equivalent Series Resistance) | 1.15 Ohms |
| Voltage - Protection Level (VP) (2416) | 13VDC | ||
Mechanical
| Height | 11 | Length | 11mm |
| Diameter | 6.3 mm | Packaging | Bulk |
| Termination | Radial | Construction | Aluminum Cylindrical Can |
| Lead Spacing | 2.5 mm | Pin Diameter | 0.5 |
| Pitch - Post | 2.5 | Mounting Type | Through Hole |
| Wire Diameter | 0.5mm | Package / Case | 11 mm |
| Length - Overall | 15mm | Material - Blade | AluminumElectrolytic |

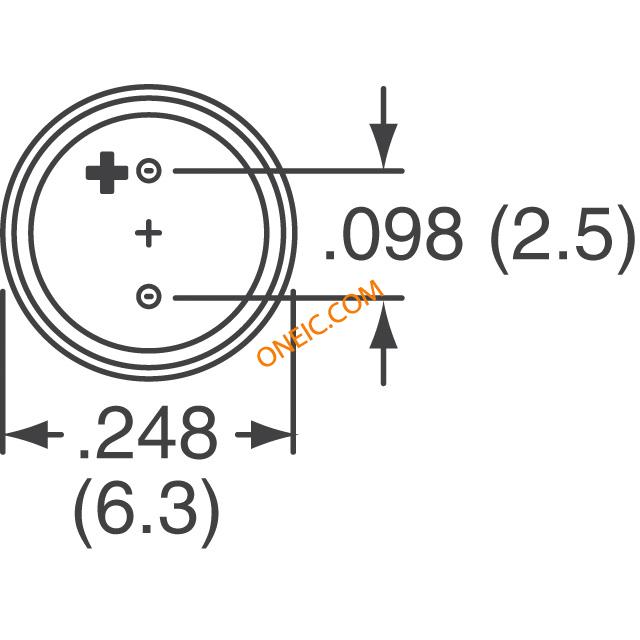

| Size / Dimension | 6.3 mm Dia. x 11 mm L | Pitch - Connector | 2.5mm |
| Termination Style | Radial | ||
Product Info
| Type | Electrolytic | Series | SK |
| Electrical Life | 2000 | ||
Environmental
| Rated Life | 2000 hr | Operating Temperature | - 40 C to + 85 C |
| Operating Temperature - Junction | 85°C | ||
