MC12FD470J-F

Manufacturer	Cornell Dubilier Electronics, Inc.
Description	Mica Capacitors 47pF 500Volts 5% CAP MICA 47PF 500V 5% 1210 Cap Mica 47pF 500V 5% (3.2 X 2.5 X 2mm) SMD 125C Bulk CAP, RF, MC12FD470J-F CAPACITOR RF/MICROWAVE 47PF, 500V, 1210 5% Capacitor;Mica;Cap47pF;Tol5%;Vol-Rtg100VDC;SMT;1210
Category	Connector SolutionsBackplane ConnectorsDIN 41612

对参数有疑问？问 AI 助手

Business

Product	Mica HV & High Current Capacitors	Product Category	Mica Capacitors
Standard Package	100	Factory Pack Quantity	100

Compliance

RoHS	RoHS Compliant By Exemption	Tariff No	85322900
Rad Hardened	No	Military Standard	Not Required

Electrical

Voltage	500VDC	Tolerance	5 %
Capacitance	47 pF	Voltage Rating	500 V
Capacitance - Input	:1210 [3225 Metric]	Dissipation Factor (DF)	0.1

Mechanical

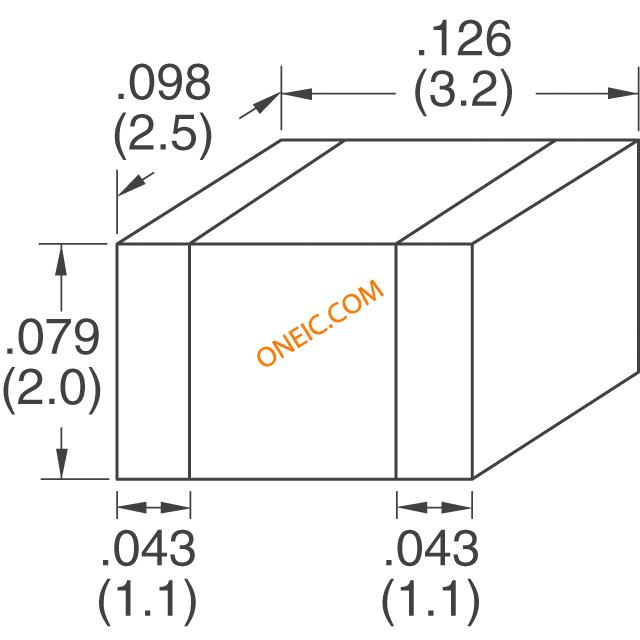

Size	3.2 X 2.5 X 2	Depth	2.5 mm
Width	2.5 mm	Height	2 mm
Weight	0.04	Diameter	Not Required mm
Packaging	Bulk	Termination	SMT
Construction	SMT Chip	Height (Max)	Not Required mm
Lead Spacing	Not Required mm	Mounting Type	Surface Mount
Mounting Style	Surface Mount	Package / Case	1210 (3225 metric)
Material Finish	:-	Length - Overall	3.2 mm
Material - Blade	Mica	Size / Dimension	2.5 mm L x 3.2 mm W x 2 mm H
Termination Style	SMD/SMT	Dielectric Material	Mica
Height - Seated (Max)	0.079" (2.00mm)	Diameter - Small Outside	Not Required mm

Product Info

Series	MC	Features	RF, High Q, Low Loss
Failure Rate	Not Required

Environmental

Operating Temperature

- 55 C to + 125 C

Temperature Coefficient

25 PPM / C

Documents & Media

PDF Document

MC.pdf

PDF Document

MC,MCN Type Mica Chip Cap SMD
