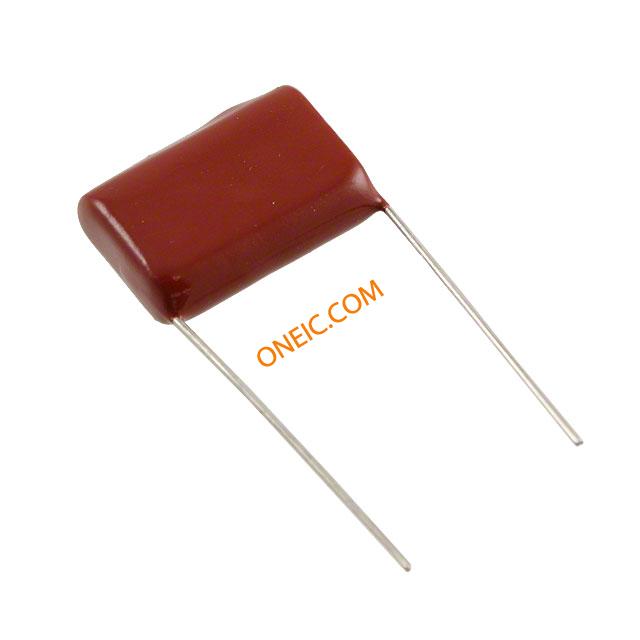

DME6P47K-F
| Manufacturer | |
| Description | Film Capacitors DME 630V.47 フィルムコンデンサ DME 630V.47 Cap Film 0.47uF 630V PET 10% (26 X 10 X 18.5mm) Radial 22.5mm 125°C CAP FILM 0.47UF 630VDC RADIAL Capacitor; PolyesterFilm; Cap 0.47 uF; Tol 10%; Vol-Rtg 630 VDC; Radial Capacitor;Polyesterfilm;Cap0.47uF;Tol10%;Vol-Rtg630VDC;Radial |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Metallized Polyester Film Capacitors | メーカ | Cornell Dubilier |
| Product Category | Film Capacitors | Standard Package | 200 |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 630VDC|250VAC | Core Type | Polyester |
| Tolerance | 10 % | Capacitance | 0.47 uF |
| Voltage Rating | 630 V | Dissipation Factor (DF) | 1 |
Mechanical
| Size | 26 mm L x 10 mm W x 18.5 mm H | Depth | 10(Max) |
| Pitch | 22.5 mm | Width | 10 mm |
| Height | 18.5(Max) | Packaging | Bulk |
| End - Size | Radial | Size - Body | 26 mm |
| Termination | PC Pins | Height (Max) | 18.5 mm |
| Lead Spacing | 22.5 mm | Pin Diameter | 0.8 mm |
| Pitch - Post | 22.5 | Mounting Type | Through Hole |
| Package / Case | 18.5 mm | Length - Overall | 26(Max) |
| Material - Blade | PolyesterMetallized | Size / Dimension | 1.024" L x 0.394" W (26.00mm x 10.00mm) |
| Termination Style | Radial | Wire Gauge - Ends | 0.8 mm |
| Dielectric Material | Polyester | Height - Seated (Max) | 0.787" (20.00mm) |
Product Info
| Type | Miniature Dipped Metallized Polyester Film Capacitor | Series | DME |
| Applications | General Purpose | Manufacturer | DMESeries |
| Product Type | General Purpose | Card Standard | フィルムコンデンサ |
| Number of Units | 200 | ||
Environmental
| Rated Life | 1000 hr | Operating Temperature | - 55 C to + 125 C |
| Thermal Resistance @ Natural | 1 | Operating Temperature - Junction | - 55 C to + 125 C |
