CGS653U025W4C
| Manufacturer | |
| Description | Aluminum Electrolytic Capacitors - Screw Terminal 65000uF 25V-10+75% Cap Aluminum 65000uF 25V -10% to 75% (63.5 X 104.775mm) Clamp Mount Screw Terminal 0.009 Ohm 16500mA 85°C CAP ALUM 65000UF 25V SCREW Capacitor; Al;65000uF;High Cap. Computer Grade;Screw;-10%;+75%;25WVDC;30SVDC Capacitor;Al;65000uF;HighCap.ComputerGrade;Screw;-10%,+75%;25VDC;30SVDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Computer Grade Electrolytic Capacitors | Lead Time | 77 Days |
| Subcategory | Capacitor Aluminum | Product Category | Aluminum Electrolytic Capacitors - Screw Terminal |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| ESR | 0.009Ohms@120Hz | Voltage | 25VDC |
| Tolerance | - 10 %, + 75 % | Capacitance | 0.065 Farad |
| Voltage Rating | 25 V | Current - Leakage | 6000@5Min |
| Ripple Current @ High Frequency | 16.5 A | ESR (Equivalent Series Resistance) | 9 mOhms |
| Voltage - Protection Level (VP) (2416) | 30VDC | ||
Mechanical
| Height | 104.775(Max) | Length | 105 mm (4.125 in) |
| Diameter | 63.5 mm (2.5 in) | Packaging | Bulk |
| Termination | ScrewTerminal,Male | Construction | Metal Can |

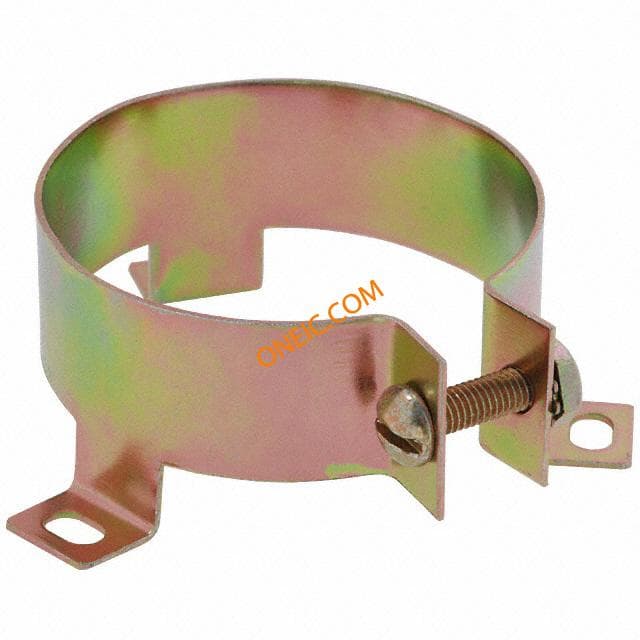

| Lead Spacing | 28.6 mm (1.125 in) | Mounting Type | Clamp Mount |
| Material - Blade | AluminumElectrolytic | Termination Style | Screw |
Product Info
| Type | Electrolytic | Series | CGS |
Environmental
| Shelf Life | 1000hr | Operating Temperature | - 40 C to + 85 C |
| Operating Temperature - Junction | +85°C | ||
