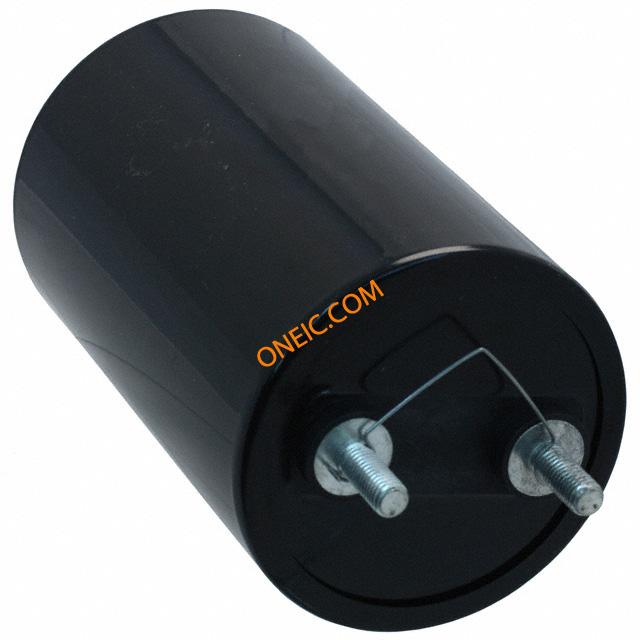

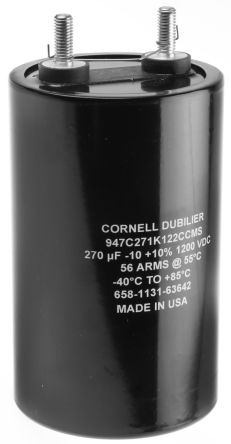

947C271K122CCMS
| Manufacturer | |
| Description | Film Capacitors 270uF 1200V 55C Cap Film 270uF 1200V PP 10% (90 X 145mm) Stud Mount Metal Can 0.0029 Ohm 85°C CAP FILM 270UF 1.2KVDC SCREW Cornell-Dubilier 270μF ±10% 1200V dc Stud Mount Polypropylene Film Capacitor 90mm Cap Film 270uF 1200V PP 10% (90 X 145mm) Stud Mount Metal Can 0.0029 Ohm 85�C Capacitor;PolypropyleneMetallized;Cap270uF;Tol10%;Vol-Rtg1200VDC;Screw Cornell-Dubilier 947C 系列 270μF 聚丙烯电容器 (PP), ±10%, 1200 V 直流, 螺柱安装, 90mm直径 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DC Link Film Capacitors | Other Names | 338-1395 |
| Product Category | Film Capacitors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage | 1200VDC | Tolerance | 10 % |
| Capacitance | 270 uF | Voltage Rating | 1.2 kV |
| Voltage - Supply | 1200 V 直流 | Current Rating (Max) | 56 A |
| Resistance Tolerance | +10% | ESR (Equivalent Series Resistance) | 2.9 mOhms |
Mechanical
| Size | 90 x 145 | Depth | Not Required mm |
| Height | 145 mm | Diameter | 92 mm |
| Packaging | Bulk | Wire Gauge | M8 |
| Termination | Screw Terminals | Construction | Metal Can |

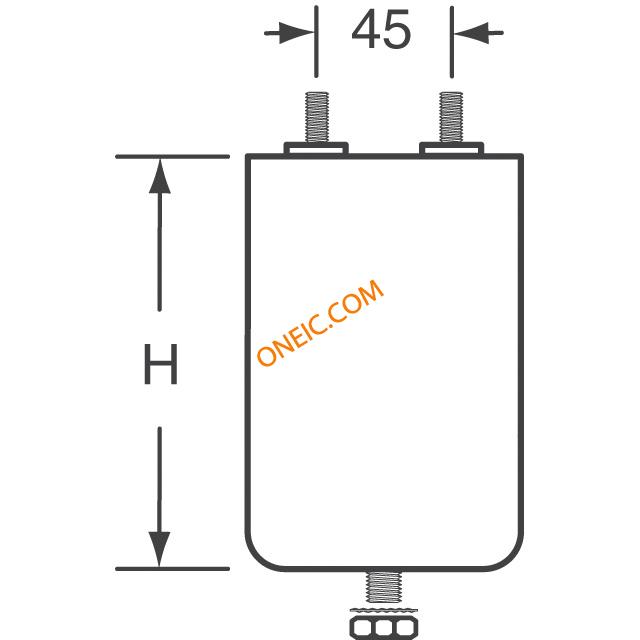

| Height (Max) | Not Required mm | Lead Spacing | 45 mm |
| Mounting Type | Stud Mount | Mounting Style | STUD MOUNT |
| Package / Case | 145 mm | Length - Overall | Not Required mm |
| Material - Blade | PolypropyleneMetallized | Size / Dimension | 3.543" Dia (90.00mm) |
| Pitch - Connector | 45mm | Termination Style | Screw |
| Dielectric Material | Polypropylene (PP) | Height - Seated (Max) | 5.787" (147.00mm) |
| Diameter - Small Outside | Not Required mm | ||
Product Info
| Type | High Capacitance High Current DC Link Capacitors | Series | 947C |
| Features | Low ESR | Function | Y |
| Applications | DC Link, DC Filtering | Failure Rate | Not Required |
| Product Type | DC Link | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | Temperature Coefficient | PP |
