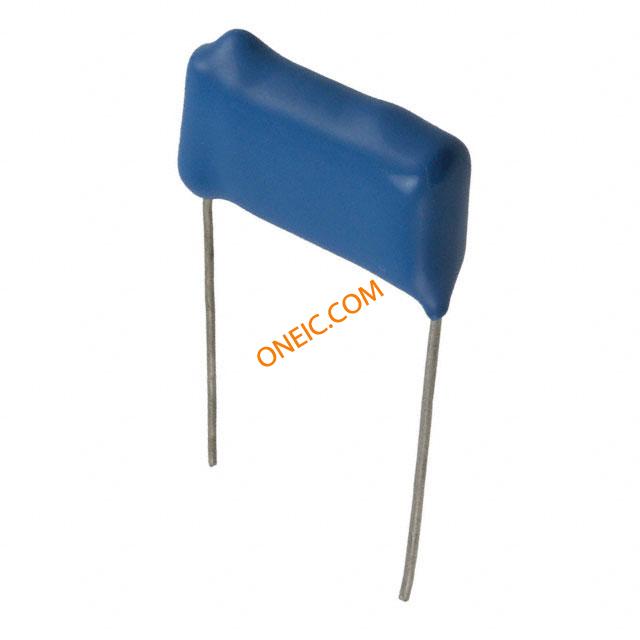

504M02QA100
| Manufacturer | |
| Description | Film Capacitors .5uF 125V 100 Ohm Quencharc Cap RC Network 0.5uF 200V 20% 100 Ohm 10% 1R/1C 85°C SUPP RC NETWORK .50UF 100OHM Capacitor; Metallized Polyester;0.5uF;Radial;200VDC;+/-20%;1.080In.L;0.370In.T; Cap RC Network 0.5uF 200V 20% 100 Ohm 10% 1R/1C 85C CAPACITOR POLY FILM 0.5UF, 200V, 20%, RADIAL Capacitor;MetallizedPolyester;0.5uF;Radial;200VDC;20%;1.080In.L;0.370In.T |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Snubber Film Capacitors | Lead Time | 70 Days |
| Other Names | 338-2576 | Subcategory | Capacitor RC Network |
| Product Category | Film Capacitors | Standard Package | 200 |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85322200 | Rad Hardened | No |
| ESD Protection | No | ||
Electrical
| Voltage | 200VDC|125VAC | Tolerance | 20 % |
| Resistance | 100 ohm | Capacitance | 0.5 uF |
| Range deg/s | :CORNELL DUBILIER - Quencharc Q Series | Filter Order | 1st |
| Voltage Rating | 200 V | Number of Channels | 1 |
| Number of Elements | 1R/1C | Capacitance - Input | :- |
| Number of Capacitors | 1R/1C | Resistance Tolerance | 10% |
| Resistance - Channel (Ohms) | 100 | ESR (Equivalent Series Resistance) | 100 Ohms |
Mechanical
| Depth | 9.4 mm | Width | 9.4 mm |
| Height | 0.892" (22.65mm) | Weight | 0.002 |
| Packaging | Bulk | Construction | Radial |
| Lead Spacing | 20.8 mm | Pitch - Post | 20.8 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 16.3 mm | Length - Overall | 27.4(Max) mm |
| Size / Dimension | 1.079" L x 0.370" W (27.40mm x 9.40mm) | Termination Style | Radial |
| Number of Contacts | 2 | Dielectric Material | Polyester |
Product Info
| Type | Arc Suppressor, Snubber Networks Metallized Polyester Film Capacitor | Series | Q-QRL |
| Values | R = 100 Ohms, C = 0.50µF | Technology | RC |
| Applications | General Purpose | Product Type | Snubber |
Environmental
| Operating Temperature | - 55 C to + 85 C | Temperature Coefficient | PET |
